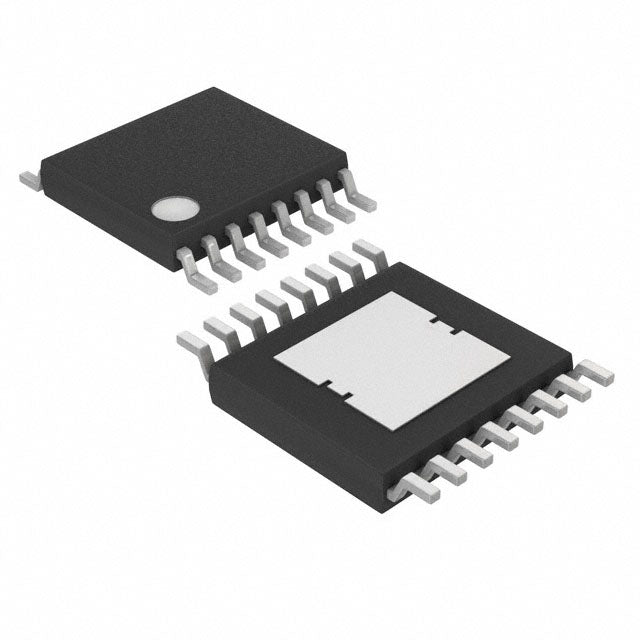

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Analog Devices Inc./Maxim Integrated
MAX14871EUE+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 24.01 AED | Dhs. 24.01 AED |
| 15+ | Dhs. 23.27 AED | Dhs. 349.05 AED |
| 25+ | Dhs. 22.76 AED | Dhs. 569.00 AED |
| 50+ | Dhs. 21.50 AED | Dhs. 1,075.00 AED |
| 100+ | Dhs. 18.97 AED | Dhs. 1,897.00 AED |
| N+ | Dhs. 3.79 AED | Price Inquiry |
Couldn't load pickup availability
MAX14871EUE+ - High-Performance Brushed DC Motor Driver IC
The MAX14871EUE+ from Analog Devices Inc./Maxim Integrated is a fully integrated brushed DC motor driver IC designed for precision motor control in industrial, robotics, and embedded applications. This advanced motor driver combines control logic and power stage in a compact 16-TSSOP package, delivering reliable performance across a wide voltage range.
Key Features & Benefits
- Dual H-Bridge Configuration: Half Bridge (2) output enables bidirectional motor control with smooth speed regulation
- High Current Capability: 3A continuous output current handles demanding motor loads
- Wide Operating Voltage: 4.5V to 36V supply and load voltage range supports diverse applications
- PWM Interface: Precise speed and torque control through pulse-width modulation
- Bi-CMOS Technology: Optimized for efficiency and thermal performance
- Extended Temperature Range: -40°C to 150°C (TJ) ensures reliable operation in harsh environments
- Compact Surface Mount Package: 16-TSSOP with exposed pad for enhanced thermal dissipation
Ideal Applications
Perfect for general-purpose motor control in robotics, industrial automation, consumer electronics, medical devices, and embedded systems requiring precise brushed DC motor management. The MAX14871EUE+ delivers the performance and reliability OEMs demand for production-scale deployments.
Why Choose HQICKEY?
At HQICKEY, we guarantee 100% authentic components with long lifecycle availability and dedicated technical support. Our global fulfillment network ensures reliable delivery for your production needs.
Related Resources
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Tube | |
| Part Status | Active |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) |
| Interface | PWM |
| Technology | Bi-CMOS |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 3A |
| Voltage - Supply | 4.5V ~ 36V |
| Voltage - Load | 4.5V ~ 36V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package / Case | 16-TSSOP-EP |
| ROHS |  |
MAX14871EUE+.pdf
