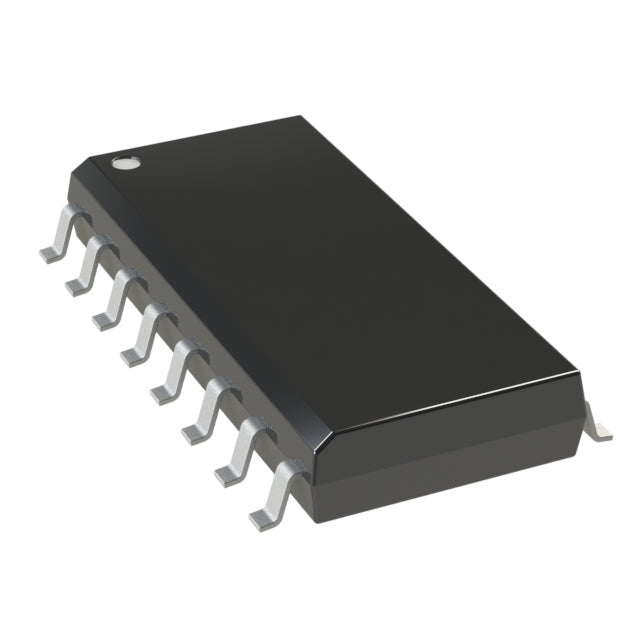

Analog Devices Inc./Maxim Integrated MAX15004BAUE+
Regular price
$9.37
Regular price
$2.34
Sale price
$9.37
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.37 | $9.37 |
| 15+ | $2.15 | $32.25 |
| 25+ | $2.11 | $52.75 |
| 50+ | $1.99 | $99.50 |
| 100+ | $1.76 | $176.00 |
| N+ | $0.35 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tube |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable |
| Topology | Boost, Flyback, SEPIC |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 40V |
| Frequency - Switching | 15kHz ~ 500kHz |
| Duty Cycle (Max) | 50% |
| Synchronous Rectifier | No |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| ROHS |  |
MAX15004BAUE+.pdf
×
