Analog Devices Inc./Maxim Integrated MAX1501ZETE
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.73 | $9.73 |
| 15+ | $2.24 | $33.60 |
| 25+ | $2.19 | $54.75 |
| 50+ | $2.07 | $103.50 |
| 100+ | $1.82 | $182.00 |
| N+ | $0.36 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tube |
| Battery Chemistry | Multi-Chemistry |
| Number of Cells | 1 ~ 3 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | Over Voltage |
| Charge Current - Max | 1.4A |
| Battery Pack Voltage | - |
| Voltage - Supply (Max) | 6.25V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

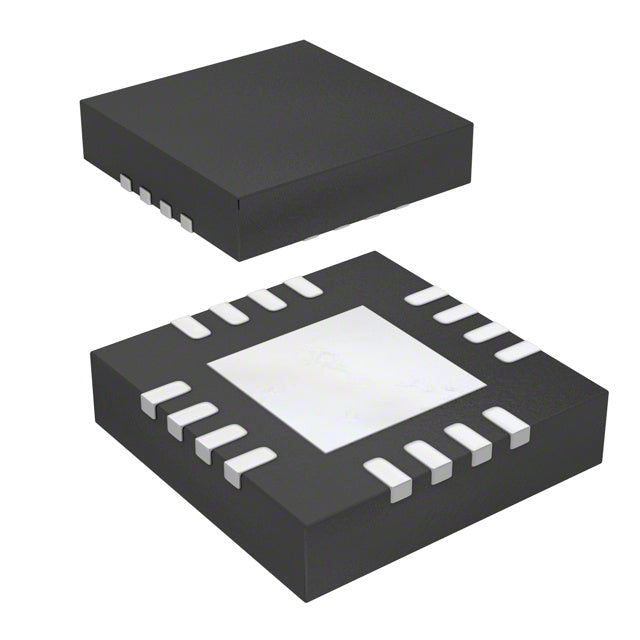

| Package / Case | 16-WQFN Exposed Pad |
| Supplier Device Package | 16-TQFN (5x5) |
| ROHS |  |
The MAX1501ZETE+ from Analog Devices Inc./Maxim Integrated is a versatile, multi-chemistry battery charger controller designed for 1 to 3 series cells. It provides a charge current up to 1.4A and includes essential Over Voltage protection. Its wide -40°C to 85°C operating range and compact 16-WQFN package make it suitable for industrial and portable applications requiring flexible battery configurations.
- Multi-Chemistry Support: Offers flexibility to charge various battery types, simplifying inventory and design.
- Scalable Cell Count: Supports 1 to 3 series cells, accommodating a wide range of battery pack voltages.
- Robust Protection: Over Voltage protection ensures safe charging across different configurations.
- Industrial Temperature Range: Rated for -40°C to 85°C, suitable for demanding environments.
- Compact Footprint: The 16-WQFN package saves valuable board space in portable designs.
Multi-Cell Power Tools
Charge 2 or 3-cell battery packs in professional power tools, utilizing the 1.4A charge current and multi-chemistry flexibility for different pack compositions.
Portable Medical Devices
Implement a reliable charging solution for multi-cell packs in medical equipment, benefiting from the wide temperature range and overvoltage protection for enhanced safety.
Industrial Handheld Terminals
Power rugged handheld scanners and PDAs with 2-3 cell packs, ensuring dependable charging in harsh industrial environments with the -40°C to 85°C rating.
Robotics and Drones
Charge the multi-cell Lithium-based packs used in hobbyist and commercial drones, leveraging the programmable cell count for design flexibility.
Emergency Lighting Systems
Utilize the multi-chemistry capability to charge backup battery packs in emergency lighting, ensuring readiness across a range of temperatures.
- Q: What battery chemistries are supported?
- A: The MAX1501ZETE+ is a multi-chemistry charger, supporting various battery types.
- Q: How many cells can it charge?
- A: It can charge between 1 and 3 battery cells in series.
- Q: What is the maximum charge current?
- A: The maximum charge current is 1.4A.
- Q: What fault protection features are included?
- A: It includes Over Voltage protection.
- Q: What is the operating temperature range?
- A: It operates over a -40°C to 85°C ambient temperature range.
- Q: What package is it available in?
- A: It comes in a compact 16-WQFN Exposed Pad package.
