Analog Devices Inc./Maxim Integrated MAX1507ETA+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.46 | $7.46 |
| 15+ | $7.22 | $108.30 |
| 25+ | $7.07 | $176.75 |
| 50+ | $6.67 | $333.50 |
| 100+ | $5.89 | $589.00 |
| N+ | $1.18 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | Over Voltage |
| Charge Current - Max | 800mA |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 6.5V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

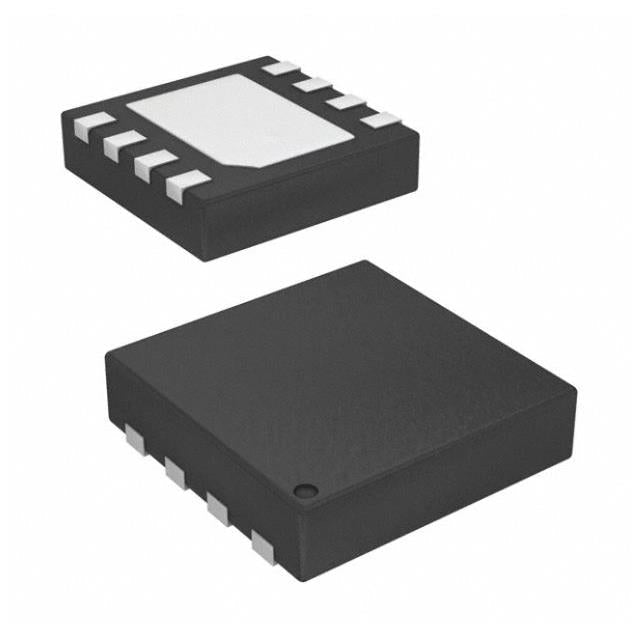

| Package / Case | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-TDFN (3x3) |
| ROHS |  |
The MAX1507ETA+T from Analog Devices Inc./Maxim Integrated is a compact linear battery charger for single-cell Lithium Ion batteries. It delivers a charge current up to 800mA with a regulated battery voltage of 4.2V. The device features Over Voltage protection to safeguard the battery. Housed in an 8-WDFN Exposed Pad package, it operates over an industrial temperature range of -40°C to 85°C, making it ideal for portable consumer electronics.
- High Charge Current: 800mA capability enables faster charging for single-cell Li-Ion batteries.
- Compact Package: The 8-WDFN package is ideal for space-constrained portable devices.
- Over Voltage Protection: Prevents battery damage from excessive voltage.
- Wide Temperature Range: Operates from -40°C to 85°C, suitable for various environments.
Smartphones and Tablets
For single-cell Li-Ion batteries in mobile devices, the MAX1507ETA+T provides up to 800mA charge current, enabling fast and safe charging with Over Voltage protection.
Digital Cameras
In compact cameras, this charger IC manages the Li-Ion battery, ensuring reliable charging with a small 8-WDFN footprint.
Portable Gaming Consoles
For handheld gaming devices, the 800mA charge current balances charge speed with thermal performance, while Over Voltage protection ensures battery safety.
Wireless Headsets
In Bluetooth earbuds and headsets, the MAX1507ETA+T offers a compact, efficient charging solution for single-cell Li-Ion batteries.
GPS Navigation Devices
For portable GPS units, this charger provides dependable charging for Li-Ion cells, with a wide -40°C to 85°C operating range for outdoor use.
- Q: What battery chemistry does the MAX1507ETA+T support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells can it charge?
- A: It supports a single cell (1 cell).
- Q: What is the maximum charge current?
- A: The maximum charge current is 800mA.
- Q: What is the battery voltage?
- A: The battery voltage is 4.2V.
- Q: What fault protection is included?
- A: It includes Over Voltage protection.
- Q: What is the package type?
- A: It comes in an 8-WDFN Exposed Pad package.
MAX1507ETA+T.pdf
- Q: What battery chemistry does the MAX1507ETA+T support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells can it charge?
- A: It supports a single cell (1 cell).
- Q: What is the maximum charge current?
- A: The maximum charge current is 800mA.
- Q: What is the battery voltage?
- A: The battery voltage is 4.2V.
- Q: What fault protection is included?
- A: It includes Over Voltage protection.
- Q: What is the package type?
- A: It comes in an 8-WDFN Exposed Pad package.
