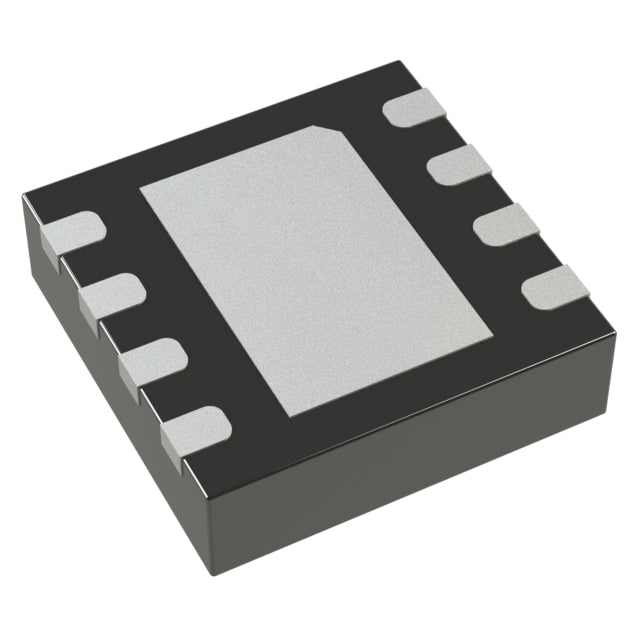

Analog Devices Inc./Maxim Integrated MAX1508ETA
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.36 | $13.36 |
| 15+ | $3.07 | $46.05 |
| 25+ | $3.01 | $75.25 |
| 50+ | $2.84 | $142.00 |
| 100+ | $2.51 | $251.00 |
| N+ | $0.50 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current, Voltage |
| Fault Protection | Over Temperature, Over Voltage |
| Charge Current - Max | 800mA |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 13V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-TDFN-EP (3x3) |
The MAX1508ETA from Analog Devices is a simple and efficient linear battery charger for single-cell Lithium Ion batteries. It provides a maximum charge current of 800mA and targets a 4.2V battery voltage. The device includes Over Temperature and Over Voltage protection to ensure safe operation. With a wide -40°C to 85°C temperature range and a compact 8-WDFN package, it is suitable for a variety of consumer and portable electronic devices.
- Optimal Charge Rate: 800mA current is suitable for a wide range of standard Li-Ion cells.
- Integrated Protections: Over Voltage and Over Temperature protection enhance system safety.
- Compact and Efficient: The 8-WDFN package is ideal for space-limited designs.
- Wide Temperature Range: Operates from -40°C to 85°C, suitable for diverse environments.
Digital Cameras
The MAX1508ETA's 800mA charge current is well-suited for charging the single-cell Li-Ion batteries in compact digital cameras and action cams.
Bluetooth Speakers
For portable Bluetooth speakers, this charger provides a balanced charge current for internal Li-Ion cells, ensuring safe and efficient charging.
Portable GPS Devices
With Over Voltage protection, it is ideal for automotive portable GPS units where battery voltage spikes can occur.
E-Cigarettes and Vapes
The compact 8-WDFN package and 800mA current make it suitable for the rechargeable Li-Ion batteries used in vaping devices.
Smart Home Sensors
For battery-powered doorbells and sensors, the -40°C to 85°C temperature range ensures reliable charging in outdoor or unconditioned spaces.
- Q: What battery chemistry does the MAX1508ETA support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells can it charge?
- A: It supports a single-cell (1s) configuration.
- Q: What is the maximum charge current?
- A: The maximum charge current is 800mA.
- Q: What is the target battery voltage?
- A: The target battery voltage is 4.2V.
- Q: What fault protections are included?
- A: It includes Over Temperature and Over Voltage protection.
- Q: What is the operating temperature range?
- A: The ambient temperature range is -40°C to 85°C.
