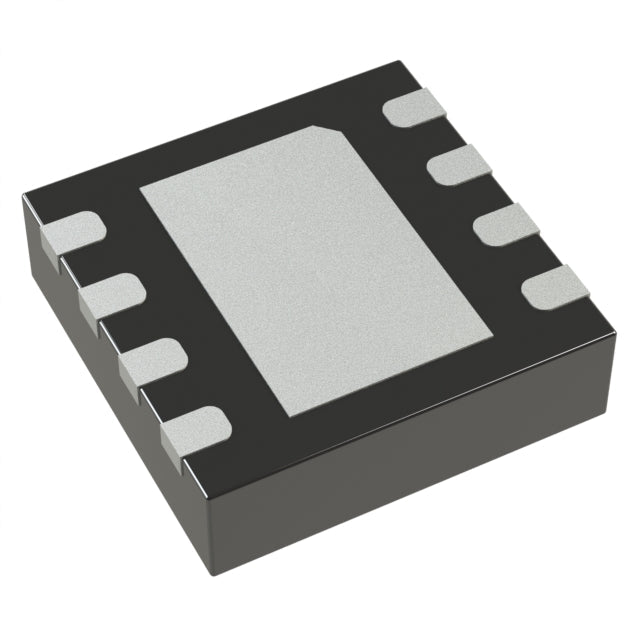

Analog Devices Inc./Maxim Integrated MAX1508ZETA
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $11.24 | $11.24 |
| 15+ | $2.59 | $38.85 |
| 25+ | $2.53 | $63.25 |
| 50+ | $2.39 | $119.50 |
| 100+ | $2.11 | $211.00 |
| N+ | $0.42 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current, Voltage |
| Fault Protection | Over Temperature, Over Voltage |
| Charge Current - Max | 800mA |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 13V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-TDFN-EP (3x3) |
The MAX1508ZETA is a linear charger for single-cell Lithium Ion batteries, delivering up to 800mA charge current at a regulated 4.2V. Packaged in an 8-WDFN with exposed pad, it integrates over-temperature and over-voltage protection. Its wide operating temperature range makes it versatile for industrial and portable applications.
- 800mA charge current enables faster charging for single-cell Li+ batteries.
- Over-temperature protection prevents thermal runaway in demanding conditions.
- Over-voltage protection ensures safe charging up to 4.2V.
- Wide -40°C to 85°C range supports industrial applications.
Portable Power Banks
With 800mA charge capability, it can efficiently charge single-cell Li+ batteries in compact power banks, with over-temperature protection for safe operation.
Industrial Handhelds
The -40°C to 85°C range makes it suitable for rugged handheld devices used in extreme environments, ensuring reliable charging.
Medical Monitoring Devices
Provides a stable 4.2V charge for wearable monitors, with over-voltage protection to safeguard sensitive electronics.
Consumer Cameras
Ideal for charging Li+ batteries in digital cameras, delivering fast 800mA charging while maintaining thermal safety.
Automotive Accessories
For dash cams or portable navigation devices, this charger offers dependable performance across a wide temperature range.
- Q: What battery chemistry is supported?
- A: It supports Lithium Ion batteries.
- Q: How many cells can it charge?
- A: It is designed for 1 cell.
- Q: What is the maximum charge current?
- A: The maximum charge current is 800mA.
- Q: What is the battery voltage?
- A: The battery voltage is 4.2V.
- Q: What fault protections are included?
- A: It includes Over Temperature and Over Voltage protection.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C (TA).
MAX1508ZETA.pdf
