MAX15500KGTJ+T

MAX15500KGTJ+T Signal Conditioner IC

The MAX15500KGTJ+T from Analog Devices Inc./Maxim Integrated is a high-performance single-channel signal conditioner designed for precision analog applications. This surface-mount IC features an SPI data interface and operates reliably across a wide temperature range of -40°C to 105°C, making it ideal for demanding industrial, automotive, and telecommunications applications.

Key Features:

• Single-Channel Conditioner - Optimized signal conditioning for precision applications
• SPI Interface - Industry-standard serial peripheral interface for easy integration
• Dual Voltage Supply - Flexible analog and digital power options (±15V ~ 32.5V, 18.5V, 2.7V ~ 5.25V)
• Wide Operating Temperature - Reliable performance from -40°C to 105°C

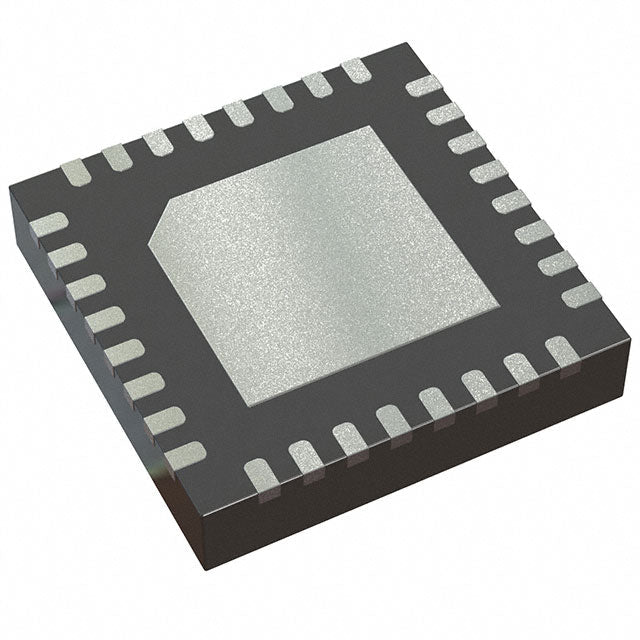

• Compact 32-TQFN Package - Space-efficient 5x5mm surface mount design with exposed pad
• RoHS Compliant - Environmentally friendly, lead-free construction

Applications:

Perfect for aerospace systems, automotive electronics, industrial control systems, telecommunications equipment, and medical devices requiring precise signal conditioning with long lifecycle support and full traceability.

Technical Specifications:

Product attributes	Property Value
Manufacturer	Analog Devices Inc./Maxim Integrated
Product Series
Packaging	Tape & Reel (TR) |
Type	Conditioner
Number of Channels	1
Resolution (Bits)	-
Sampling Rate (Per Second)	-
Data Interface	SPI
Voltage Supply Source	Analog and Digital, Dual ±
Voltage - Supply	±15V ~ 32.5V, 18.5V, 2.7V ~ 5.25V
Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount
Grade	-
Qualification	-
Package / Case	32-WFQFN Exposed Pad
Supplier Device Package	32-TQFN (5x5)
ROHS
