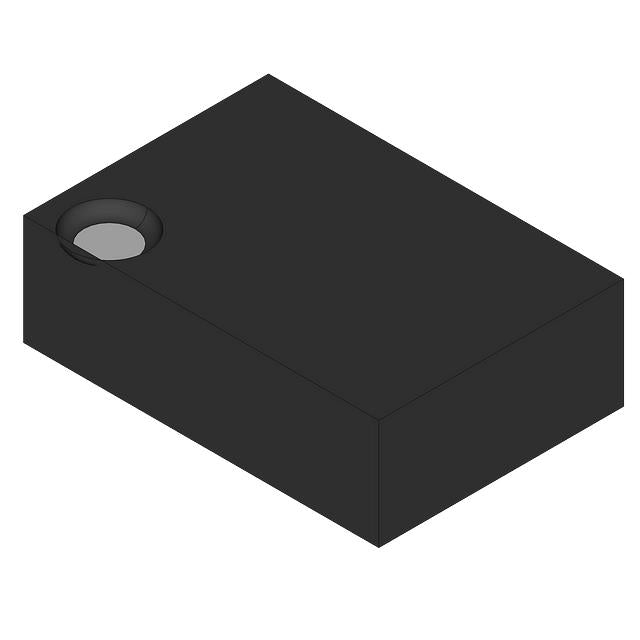

Analog Devices Inc./Maxim Integrated MAX1589AETT250+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.44 | $6.44 |
| 15+ | $1.48 | $22.20 |
| 25+ | $1.45 | $36.25 |
| 50+ | $1.37 | $68.50 |
| 100+ | $1.21 | $121.00 |
| N+ | $0.24 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 3.6V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.35V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 140 µA |
| Current - Supply (Max) | - |
| PSRR | 70dB (1kHz) |
| Control Features | Enable, Reset |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-TDFN (3x3) |
The MAX1589AETT250+ is a fixed 2.5V low dropout linear regulator from Analog Devices, capable of delivering 500mA of output current. It features a low dropout voltage of 0.35V and a high PSRR of 70dB at 1kHz, making it ideal for noise-sensitive applications. The regulator's low quiescent current of 140 µA and compact 6-TDFN (3x3) package make it perfect for portable and battery-powered devices.
- High PSRR: 70dB at 1kHz ensures clean power for RF and analog circuits.
- Low Quiescent Current: 140 µA quiescent current is ideal for battery-powered applications.
- High Current Density: 500mA output in a tiny 6-TDFN (3x3) package saves board space.
- Low Dropout: 0.35V dropout at full load improves efficiency.
Portable Electronics Core Supply
The MAX1589AETT250+ is ideal for powering the 2.5V core of application processors, DSPs, and FPGAs in smartphones, tablets, and portable media players, offering 500mA of current.
Noise-Sensitive RF Circuits
With a high PSRR of 70dB at 1kHz, this LDO is excellent for powering RF transceivers, VCOs, and PLLs, ensuring clean and stable power for optimal signal performance.
Battery-Powered Wireless Devices
The low quiescent current of 140 µA and low dropout voltage make it perfect for battery-powered IoT devices, wearables, and wireless sensors, maximizing operational life.
Compact Handheld Instruments
The small 6-TDFN (3x3) package is ideal for space-constrained designs like handheld multimeters, portable medical devices, and compact data acquisition systems.
DDR Memory Termination
This regulator can be used to provide a clean 2.5V supply for DDR memory termination circuits, ensuring reliable high-speed data transfer.
