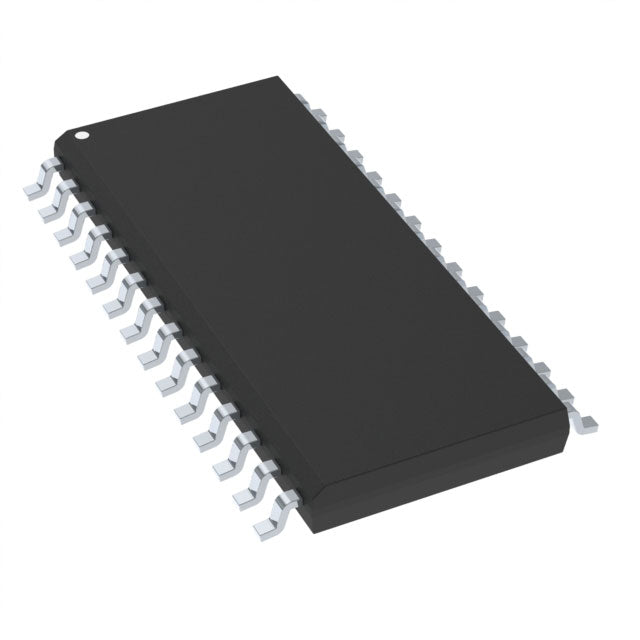

Analog Devices Inc./Maxim Integrated MAX158AEAI+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $135.80 | $135.80 |
| 15+ | $28.21 | $423.15 |
| 25+ | $27.59 | $689.75 |
| 50+ | $26.06 | $1,303.00 |
| 100+ | $23.00 | $2,300.00 |
| N+ | $4.60 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 8 |
| Sampling Rate (Per Second) | 400k |
| Number of Inputs | 8 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Flash |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
The MAX158AEAI is a high-speed, 8-bit analog-to-digital converter featuring 8 multiplexed input channels and a maximum sampling rate of 400k SPS. Its MUX-S/H-ADC architecture integrates a sample-and-hold circuit, ensuring accurate conversion of fast-changing analog signals. With a parallel interface and support for both external and internal references, this ADC offers design flexibility. It operates over a wide temperature range of -40°C to 85°C and is available in a compact 28-SSOP package, making it suitable for space-constrained industrial, automotive, and medical applications.
- High-Speed Multiplexing: 8 input channels with 400k SPS sampling rate enable efficient multi-signal acquisition in a single device.
- Integrated Sample-and-Hold: The MUX-S/H-ADC architecture ensures accurate conversion of dynamic signals without external S/H circuitry.
- Flexible Reference Options: Support for both external and internal references allows designers to optimize for accuracy or simplicity.
- Wide Temperature Range: Operation from -40°C to 85°C ensures reliable performance in harsh industrial environments.
Multi-Channel Data Acquisition Systems
The MAX158AEAI's 8 multiplexed input channels and 400k SPS sampling rate make it ideal for multi-channel data acquisition systems where several analog signals need to be digitized sequentially with high throughput.
Industrial Process Control
With its 8-bit resolution and parallel interface, this ADC is well-suited for industrial process control applications, enabling fast and reliable conversion of sensor signals in real-time control loops.
Battery-Powered Portable Instruments
The MAX158AEAI's efficient architecture and wide operating temperature range (-40°C to 85°C) make it suitable for portable instruments that require low power consumption and reliable performance in varying environmental conditions.
Automotive Sensor Monitoring
The device's ability to handle multiple inputs and its robust temperature range make it applicable for automotive sensor monitoring, where multiple parameters such as temperature, pressure, and position need to be digitized.
Medical Monitoring Equipment
In medical devices, the MAX158AEAI can be used to digitize signals from multiple biological sensors, providing the necessary speed and accuracy for patient monitoring systems.
- Q: What type of ADC is the MAX158AEAI?
- A: The MAX158AEAI is an 8-bit analog-to-digital converter with a MUX-S/H-ADC architecture, integrating a multiplexer and sample-and-hold circuit.
- Q: What is the resolution of the MAX158AEAI?
- A: The MAX158AEAI has a resolution of 8 bits, providing 256 discrete output levels.
- Q: What is the maximum sampling rate of the MAX158AEAI?
- A: The MAX158AEAI supports a maximum sampling rate of 400k SPS (samples per second).
- Q: How many input channels does the MAX158AEAI have?
- A: The MAX158AEAI features 8 multiplexed input channels.
- Q: What interface does the MAX158AEAI use?
- A: The MAX158AEAI uses a parallel interface for data output.
- Q: What is the package type of the MAX158AEAI?
- A: The MAX158AEAI is available in a 28-SSOP package (0.209", 5.30mm width).
