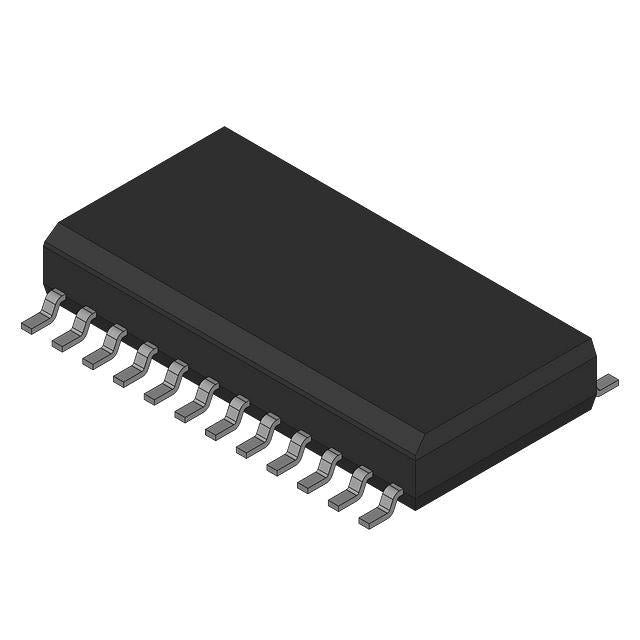

Analog Devices Inc./Maxim Integrated MAX163CEWG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $171.00 | $171.00 |
| 15+ | $39.33 | $589.95 |
| 25+ | $38.48 | $962.00 |
| 50+ | $36.34 | $1,817.00 |
| 100+ | $32.06 | $3,206.00 |
| N+ | $6.41 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 100k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | -11.4V ~ -15.75V, 4.75V ~ 5.25V |
| Voltage - Supply, Digital | -11.4V ~ -15.75V, 4.75V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
The MAX163CEWG from Analog Devices (Maxim Integrated) is a 12-bit analog-to-digital converter (ADC) designed for precision measurement applications. With a sampling rate of 100 kSPS and a single input channel, it offers reliable conversion for a variety of sensor signals. The parallel interface ensures easy integration with digital systems, while the internal reference simplifies design. This ADC is well-suited for industrial control, portable instruments, and automotive applications where accuracy and reliability are essential.
- Internal Reference: Eliminates the need for external reference components, simplifying circuit design and reducing BOM cost.
- Low Power Operation: Suitable for battery-powered devices, extending operational life.
- Parallel Interface: Provides fast and straightforward data transfer to microcontrollers and DSPs.
- Wide Temperature Range: Operates reliably from -40°C to 85°C, suitable for harsh environments.
- Compact SOIC Package: The 24-SOIC package is space-efficient and widely available.
Industrial Process Control
The MAX163CEWG's 100 kSPS sampling rate and 12-bit resolution are well-suited for industrial process control, providing accurate digitization of sensor signals for monitoring and regulation.
Battery-Powered Instruments
With its internal reference and low power consumption, this ADC is ideal for portable data loggers and battery-operated measurement devices.
Data Acquisition Systems
The parallel interface simplifies connection to microcontrollers, making it a good choice for general-purpose data acquisition systems.
Automotive Sensor Interfaces
Its wide temperature range (-40°C to 85°C) makes it suitable for automotive applications like engine control and battery monitoring.
Precision Weighing Systems
The 12-bit resolution provides sufficient accuracy for load cell and strain gauge digitization in industrial scales.
- Q: What is the resolution of the MAX163CEWG?
- A: It is a 12-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: The MAX163CEWG has a sampling rate of 100 kSPS (100k samples per second).
- Q: How many channels does it have?
- A: It features a single (1) input channel.
- Q: What interface does it use?
- A: It uses a parallel interface.
- Q: What is the architecture?
- A: It uses a S/H-ADC architecture.
- Q: What is the package type?
- A: It is available in a 24-SOIC (0.295", 7.50mm Width) package.
