Analog Devices Inc./Maxim Integrated MAX16809ATU+
Regular price
$5.24
Regular price
$5.52
Sale price
$5.24
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.24 | $5.24 |
| 15+ | $5.08 | $76.20 |
| 25+ | $4.97 | $124.25 |
| 50+ | $4.69 | $234.50 |
| 100+ | $4.14 | $414.00 |
| N+ | $0.83 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Tube | |
| Type | DC DC Controller |
| Topology | SEPIC, Step-Down (Buck), Step-Up (Boost) |
| Internal Switch(s) | No |
| Number of Outputs | 16 |
| Voltage - Supply (Min) | 8V |
| Voltage - Supply (Max) | 26.5V |
| Voltage - Output | 36V |
| Current - Output / Channel | 55mA |
| Frequency | 20kHz ~ 1MHz |
| Dimming | PWM |
| Applications | Backlight, Lighting |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

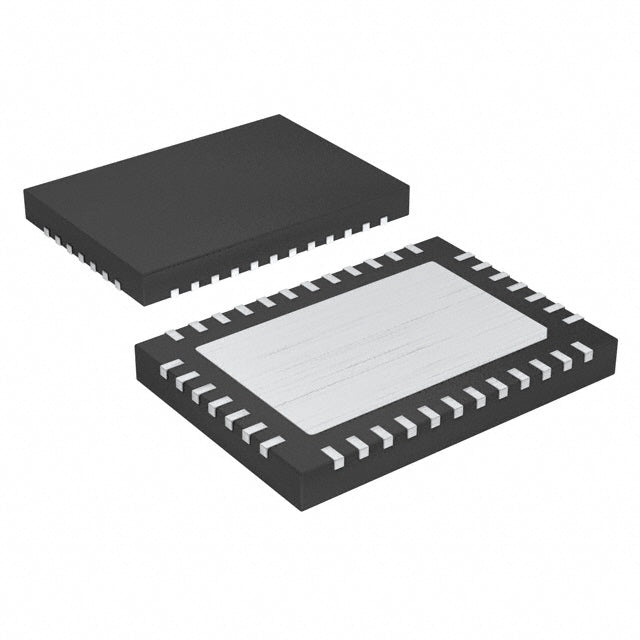

| Package / Case | 38-WFQFN Exposed Pad |
| Supplier Device Package | 38-TQFN (5x7) |
| ROHS |  |
MAX16809ATU+.pdf
×
