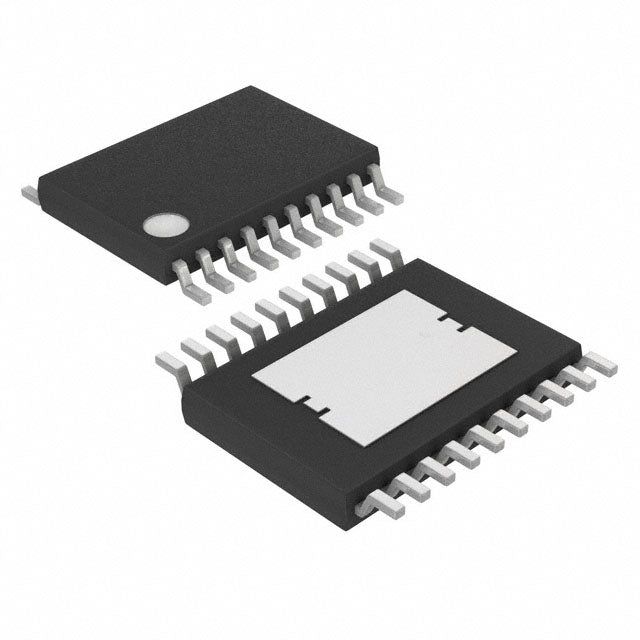

Analog Devices Inc./Maxim Integrated MAX16814AUP/V+T
Regular price
$9.26
Regular price
$9.75
Sale price
$9.26
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.26 | $9.26 |
| 15+ | $8.97 | $134.55 |
| 25+ | $8.78 | $219.50 |
| 50+ | $8.29 | $414.50 |
| 100+ | $7.31 | $731.00 |
| N+ | $1.46 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Type | DC DC Controller |
| Topology | SEPIC, Step-Down (Buck), Step-Up (Boost) |
| Internal Switch(s) | No |
| Number of Outputs | 4 |
| Voltage - Supply (Min) | 4.75V |
| Voltage - Supply (Max) | 40V |
| Voltage - Output | - |
| Current - Output / Channel | 150mA |
| Frequency | 200kHz ~ 2MHz |
| Dimming | PWM |
| Applications | Backlight, Lighting |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 20-TSSOP-EP |
| ROHS |  |
MAX16814AUP/V+T.pdf
×
