Analog Devices Inc./Maxim Integrated MAX17205G+T0E
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $12.25 | $12.25 |
| 15+ | $2.82 | $42.30 |
| 25+ | $2.75 | $68.75 |
| 50+ | $2.60 | $130.00 |
| 100+ | $2.30 | $230.00 |
| N+ | $0.46 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | ModelGauge™ |
| Packaging | Factory | Tape & Reel (TR) |
| Function | Multi-Function Controller |
| Battery Chemistry | - |
| Number of Cells | 2 ~ 3 |
| Fault Protection | - |
| Interface | I2C |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

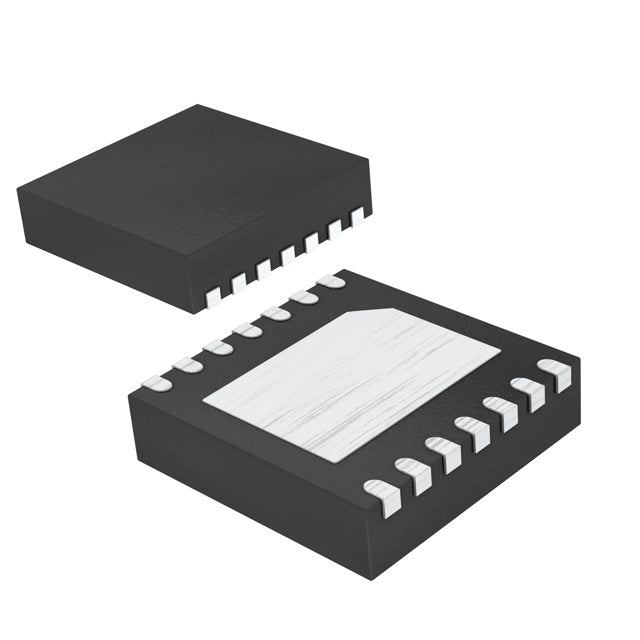

| Package / Case | 14-WFDFN Exposed Pad |
| Supplier Device Package | 14-TDFN (3x3) |
| ROHS |  |
The MAX17205G is a Multi-Function Controller from Analog Devices/Maxim Integrated, designed for managing 2 to 3 cell battery packs. It communicates via the I2C interface, enabling precise data exchange with system hosts. This controller operates over a temperature range of -40°C to 85°C and is housed in a compact 14-WFDFN Exposed Pad package, making it suitable for space-constrained portable applications.
- Compact Solution: The 14-WFDFN package saves board space in portable designs.
- Standard I2C Interface: Enables easy integration with existing system architectures.
- Wide Operating Range: Functions reliably from -40°C to 85°C for diverse environments.
- Multi-Cell Support: Manages 2-3 cell packs, ideal for common portable electronics.
Smartphone and Tablet Batteries
Manage 2-3 cell Li-Ion packs in high-end portable devices, using the I2C interface for accurate fuel gauging and communication with the application processor.
Portable Medical Devices
Ensure reliable battery monitoring in handheld medical equipment, where the -40°C to 85°C range covers clinical and field use.
Handheld Industrial Scanners
Provide robust battery management for rugged handheld scanners used in warehouses, benefiting from the compact 14-WFDFN package.
Consumer Electronics Accessories
Integrate into high-capacity power banks or portable speakers with 2-3 cell configurations, enabling smart charging and status reporting.
Drones and UAVs
Monitor 2-3 cell Li-Po batteries in small drones, leveraging the multi-function controller for safe operation and accurate remaining capacity estimation.
- Q: What is the function of the MAX17205G?
- A: It is a Multi-Function Controller for battery management applications.
- Q: How many cells does it support?
- A: It supports 2 to 3 cells in series.
- Q: What communication interface does it use?
- A: It uses the I2C interface.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C (TA).
- Q: What package is it available in?
- A: It comes in a 14-WFDFN Exposed Pad package.
