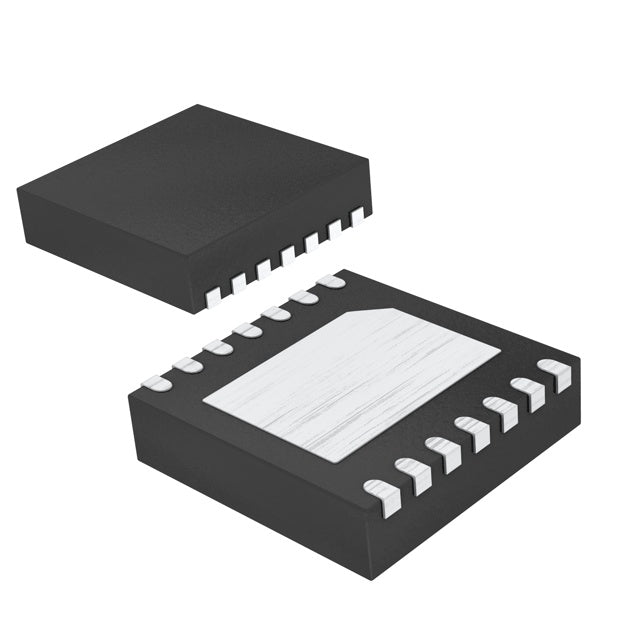

Analog Devices Inc./Maxim Integrated MAX17300G+T
Regular price
$11.05
Regular price
$2.76
Sale price
$11.05
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $11.05 | $11.05 |
| 15+ | $2.54 | $38.10 |
| 25+ | $2.48 | $62.00 |
| 50+ | $2.35 | $117.50 |
| 100+ | $2.07 | $207.00 |
| N+ | $0.41 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | ModelGauge™ |
| Packaging | Factory | Tape & Reel (TR) |
| Function | Fuel Gauge |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Fault Protection | Over Current, Over Temperature, Over/Under Voltage, Short Circuit |
| Interface | I2C |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-WFDFN Exposed Pad |
| Supplier Device Package | 14-TDFN (3x3) |
| ROHS |  |
The MAX17300G+T is a fuel gauge from Analog Devices for single-cell Lithium Ion/Polymer batteries. It provides over current, over temperature, over/under voltage, and short circuit protection. Using an I2C interface, it operates from -40°C to 85°C in a 14-WFDFN package.
- Comprehensive protection: Includes short circuit, over current, and voltage/temperature safeguards.
- Accurate fuel gauging: I2C interface enables precise data readout.
- Compact design: 14-WFDFN package suits space-limited devices.
- Wide temperature range: -40°C to 85°C for versatile applications.
Smartphones and Tablets
Single-cell lithium polymer batteries in mobile devices benefit from accurate fuel gauging and comprehensive protection.
Wearable Devices
Compact 14-WFDFN package fits smartwatches and fitness trackers with 1-cell batteries.
Portable Medical Monitors
I2C interface allows easy integration with medical sensors for reliable battery status.
Digital Cameras
Single-cell packs in cameras need precise state-of-charge and short-circuit protection.
Bluetooth Speakers
Portable speakers with 1-cell lithium batteries gain extended runtime monitoring.
- Q: What is the function of the MAX17300G+T?
- A: It is a Fuel Gauge for battery monitoring.
- Q: What battery chemistry does it support?
- A: It supports Lithium Ion/Polymer.
- Q: How many cells does it monitor?
- A: It supports 1 cell.
- Q: What fault protections are included?
- A: It includes Over Current, Over Temperature, Over/Under Voltage, and Short Circuit protection.
- Q: What interface does it use?
- A: It uses the I2C interface.
- Q: What is the temperature range?
- A: It operates from -40°C to 85°C (TA).
Base Product Number ：
MAX17300G
MAX17300G+T.pdf
