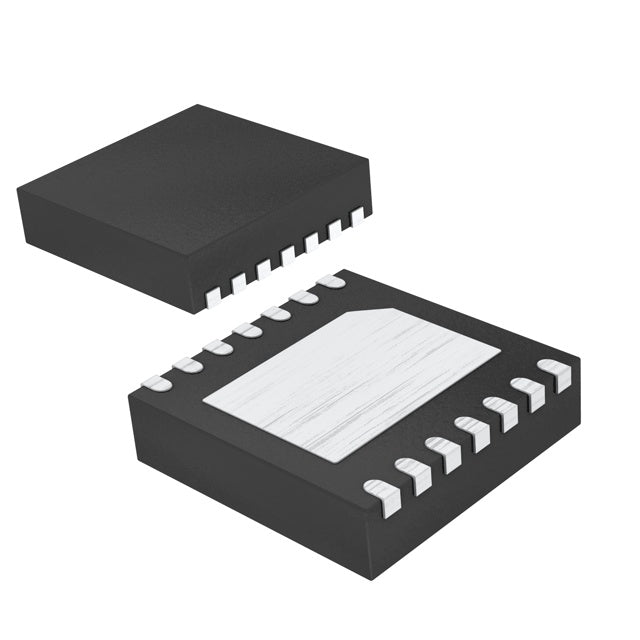

Analog Devices Inc./Maxim Integrated MAX17302G+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $11.60 | $11.60 |
| 15+ | $2.67 | $40.05 |
| 25+ | $2.61 | $65.25 |
| 50+ | $2.47 | $123.50 |
| 100+ | $2.18 | $218.00 |
| N+ | $0.44 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | ModelGauge™ |
| Packaging | Tray | |
| Function | Fuel Gauge |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Fault Protection | Over Current, Over Temperature, Over/Under Voltage, Short Circuit |
| Interface | I2C |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-WFDFN Exposed Pad |
| Supplier Device Package | 14-TDFN (3x3) |
| ROHS |  |
The MAX17302G+ from Analog Devices is a sophisticated fuel gauge IC engineered for single-cell Lithium Ion/Polymer battery packs. It integrates essential fault protection including over-current, over-temperature, over/under-voltage, and short-circuit safeguards. Featuring an I2C interface, this controller provides precise battery monitoring data to the host system. Its compact 14-WFDFN package and wide operating temperature range make it suitable for a variety of portable and industrial applications.
- Comprehensive Protection: Integrates over-current, over-temperature, over/under-voltage, and short-circuit protection to enhance battery safety and longevity.
- Accurate Fuel Gauging: Provides precise state-of-charge monitoring for single-cell Li-Po batteries, enabling longer runtimes and reliable power management.
- Wide Temperature Operation: Rated for -40°C to 85°C, ensuring dependable performance in both commercial and demanding industrial environments.
- Compact Form Factor: The 14-WFDFN Exposed Pad package minimizes PCB space, ideal for space-constrained portable devices.
- Standard I2C Interface: Simplifies integration with microcontrollers and allows for easy configuration and data retrieval.
Smartphone Battery Packs
Integrate the MAX17302G+ to provide accurate state-of-charge readings and robust protection for single-cell Li-Po batteries in smartphones, extending battery life and ensuring safe operation.
Portable Medical Devices
Use this fuel gauge in handheld medical monitors where precise battery status is critical. Its wide temperature range and I2C interface allow for reliable data logging and system integration.
Wireless Headphones & Wearables
In compact wearables, the small 14-WFDFN package and low power consumption make it ideal for tracking battery health and providing over/under voltage protection in tight spaces.
Handheld Gaming Consoles
For portable gaming devices, the MAX17302G+ ensures uninterrupted gameplay by delivering accurate fuel gauging and protecting against over-current and short-circuit events during high-load scenarios.
Industrial Handheld Terminals
In rugged PDAs or barcode scanners used in warehouses, this IC's -40°C to 85°C operating range ensures reliable performance in demanding environments, with I2C connectivity for system diagnostics.
Portable Power Banks
For single-cell power banks, this fuel gauge provides essential protection features and accurate capacity monitoring, helping to manage charge cycles and prevent damage from over-temperature or over-current conditions.
- Q: What is the primary function of the MAX17302G+?
- A: It is a fuel gauge IC designed for battery monitoring and management.
- Q: Which battery chemistries are supported?
- A: It supports Lithium Ion/Polymer batteries.
- Q: How many cells can this fuel gauge monitor?
- A: It is designed for single-cell (1) battery packs.
- Q: What fault protection features does it include?
- A: It provides Over Current, Over Temperature, Over/Under Voltage, and Short Circuit protection.
- Q: What communication interface does it use?
- A: It uses the I2C interface for data communication.
- Q: What is the operating temperature range and package type?
- A: It operates from -40°C to 85°C and comes in a 14-WFDFN Exposed Pad package.
