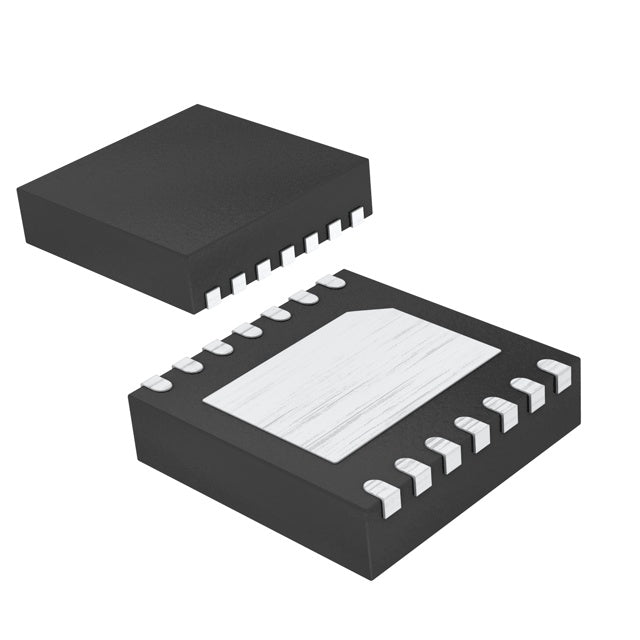

Analog Devices Inc./Maxim Integrated MAX17302G+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $11.60 | $11.60 |
| 15+ | $2.67 | $40.05 |
| 25+ | $2.61 | $65.25 |
| 50+ | $2.47 | $123.50 |
| 100+ | $2.18 | $218.00 |
| N+ | $0.44 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | ModelGauge™ |
| Packaging | Tape & Reel (TR) | |
| Function | Fuel Gauge |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Fault Protection | Over Current, Over Temperature, Over/Under Voltage, Short Circuit |
| Interface | I2C |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-WFDFN Exposed Pad |
| Supplier Device Package | 14-TDFN (3x3) |
| ROHS |  |
The MAX17302G+T is a fuel gauge IC from Analog Devices, optimized for single-cell Lithium Ion/Polymer batteries. It integrates comprehensive protection including over-current, over-temperature, over/under-voltage, and short-circuit detection. With an I2C interface, it provides accurate battery data to the host system. The compact 14-WFDFN package and wide -40°C to 85°C operating range make it a versatile solution for portable electronics.
- Integrated Protection: Safeguards against over-current, over-temperature, over/under-voltage, and short-circuit events.
- Precise Fuel Gauging: Delivers accurate state-of-charge information for single-cell Li-Po batteries, maximizing runtime.
- Wide Temperature Range: Operates from -40°C to 85°C, suitable for various environmental conditions.
- I2C Interface: Enables easy integration with standard microcontrollers and system processors.
- Space-Saving Package: The 14-WFDFN Exposed Pad package is ideal for compact device designs.
Smartphones & Tablets
Integrate the MAX17302G+T to deliver accurate battery state-of-charge information and robust protection for single-cell Li-Po batteries in mobile devices, enhancing user experience and safety.
Portable Gaming Devices
For handheld consoles, this fuel gauge ensures reliable performance under varying loads, with over-current and short-circuit protection preventing damage during intense gaming sessions.
Digital Cameras
In cameras, the I2C interface allows for seamless communication with the main processor, providing precise battery life estimates and protecting against over-temperature in hot environments.
Wireless IoT Sensors
For battery-powered IoT nodes, the wide temperature range and low power consumption make it suitable for outdoor deployments, ensuring long-term reliability and accurate monitoring.
Portable POS Terminals
In mobile payment devices, this fuel gauge offers dependable battery management, with over/under-voltage protection ensuring safe operation during charging and discharging.
E-Readers
For e-readers, the MAX17302G+T provides efficient power management, extending battery life between charges and protecting the battery from fault conditions.
- Q: What is the function of the MAX17302G+T?
- A: It is a fuel gauge IC for battery monitoring.
- Q: Which battery chemistry is supported?
- A: It supports Lithium Ion/Polymer batteries.
- Q: How many cells can it monitor?
- A: It is designed for single-cell (1) battery packs.
- Q: What fault protection does it offer?
- A: It provides Over Current, Over Temperature, Over/Under Voltage, and Short Circuit protection.
- Q: What interface does it use?
- A: It uses the I2C interface.
- Q: What is the operating temperature and package?
- A: It operates from -40°C to 85°C and comes in a 14-WFDFN Exposed Pad package.
