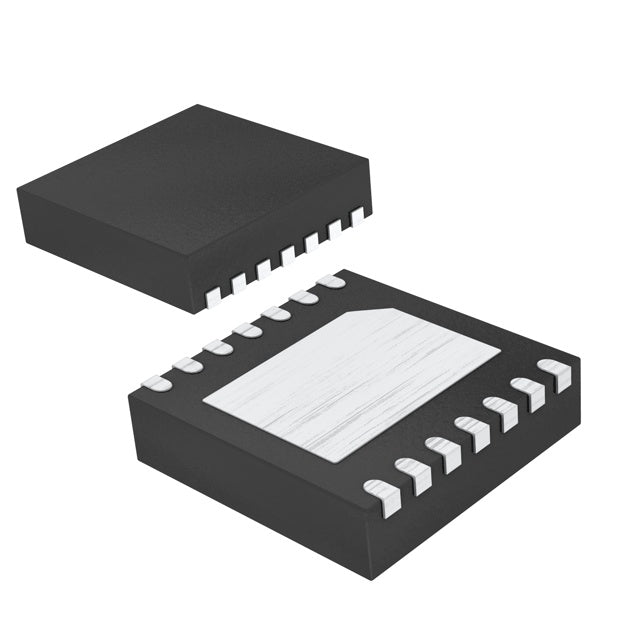

Analog Devices Inc./Maxim Integrated MAX17310G+T
Regular price
$11.05
Regular price
$2.76
Sale price
$11.05
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $11.05 | $11.05 |
| 15+ | $2.54 | $38.10 |
| 25+ | $2.48 | $62.00 |
| 50+ | $2.35 | $117.50 |
| 100+ | $2.07 | $207.00 |
| N+ | $0.41 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | ModelGauge™ |
| Packaging | Factory | Tape & Reel (TR) |
| Function | Fuel Gauge |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Fault Protection | Over Current, Over Temperature, Over/Under Voltage, Short Circuit |
| Interface | 1-Wire |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-WFDFN Exposed Pad |
| Supplier Device Package | 14-TDFN (3x3) |
| ROHS |  |
The MAX17310G+T is a fuel gauge from Analog Devices for single-cell Lithium Ion/Polymer batteries. It offers over current, over temperature, over/under voltage, and short circuit protection. With a 1-Wire interface and -40°C to 85°C operating range, it comes in a 14-WFDFN package.
- Robust protection: Includes short circuit and over current safeguards.
- Simple interface: 1-Wire reduces pin count and simplifies design.
- Compact size: 14-WFDFN package for portable applications.
- Wide temperature range: -40°C to 85°C supports industrial use.
Smart Home Devices
Single-cell battery-powered sensors and hubs benefit from 1-Wire interface simplicity.
Portable Gaming Consoles
Handheld consoles with 1-cell lithium polymer batteries need accurate fuel gauging and protection.
Medical Wearables
Compact 14-WFDFN package fits insulin pumps and heart monitors.
Industrial Sensors
Wireless sensors operating in -40°C to 85°C environments can rely on this fuel gauge.
E-Readers
Single-cell devices with long battery life benefit from precise state-of-charge monitoring.
- Q: What is the function of the MAX17310G+T?
- A: It is a Fuel Gauge for battery monitoring.
- Q: What battery chemistry does it support?
- A: It supports Lithium Ion/Polymer.
- Q: How many cells does it monitor?
- A: It supports 1 cell.
- Q: What fault protections are included?
- A: It includes Over Current, Over Temperature, Over/Under Voltage, and Short Circuit protection.
- Q: What interface does it use?
- A: It uses the 1-Wire interface.
- Q: What is the temperature range?
- A: It operates from -40°C to 85°C (TA).
Base Product Number ：
MAX17310G
MAX17310G+T.pdf
