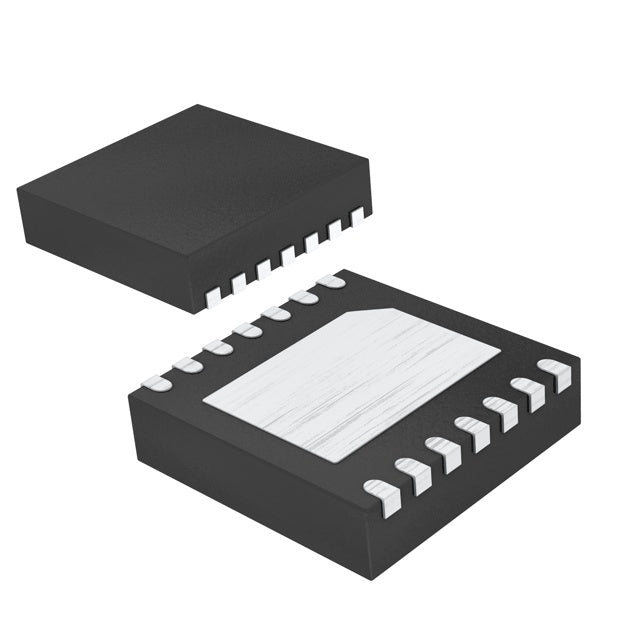

Analog Devices Inc./Maxim Integrated MAX17312G+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $11.60 | $11.60 |
| 15+ | $2.67 | $40.05 |
| 25+ | $2.61 | $65.25 |
| 50+ | $2.47 | $123.50 |
| 100+ | $2.18 | $218.00 |
| N+ | $0.44 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | ModelGauge™ |
| Packaging | Tray | |
| Function | Fuel Gauge |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Fault Protection | Over Current, Over Temperature, Over/Under Voltage, Short Circuit |
| Interface | 1-Wire |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-WFDFN Exposed Pad |
| Supplier Device Package | 14-TDFN (3x3) |
| ROHS |  |
The MAX17312G+ is a fuel gauge IC from Analog Devices, designed for single-cell Lithium Ion/Polymer batteries. It features comprehensive protection against over-current, over-temperature, over/under-voltage, and short-circuit conditions. The device utilizes a 1-Wire interface for simplified communication. Housed in a compact 14-WFDFN package, it operates over a wide -40°C to 85°C temperature range, making it suitable for demanding portable applications.
- Comprehensive Safety: Offers over-current, over-temperature, over/under-voltage, and short-circuit protection.
- Efficient 1-Wire Interface: Minimizes pin usage and simplifies system design.
- Wide Operating Temperature: Reliable from -40°C to 85°C for harsh environments.
- Accurate Battery Monitoring: Provides precise fuel gauge data for single-cell Li-Po batteries.
- Compact Design: The 14-WFDFN package is perfect for space-limited applications.
Smart Home Devices
For smart locks and sensors, the MAX17312G+ provides reliable battery monitoring with 1-Wire interface, simplifying wiring and ensuring long battery life in connected home applications.
Portable Audio Equipment
In high-end portable audio players, this fuel gauge ensures accurate battery status and protection against over-current, maintaining audio performance without interruption.
Medical Wearables
For continuous glucose monitors and health patches, the wide temperature range and compact package make it ideal for body-worn devices that require dependable battery management.
Industrial Data Loggers
In remote data logging equipment, the -40°C to 85°C range ensures operation in extreme conditions, while 1-Wire communication allows for simple data retrieval.
Portable Test Equipment
For handheld multimeters and oscilloscopes, this IC provides robust protection and accurate fuel gauging, ensuring reliable operation in field service applications.
Electric Bicycle Batteries
In single-cell auxiliary batteries for e-bikes, the MAX17312G+ offers essential protection and monitoring, contributing to safe and efficient power delivery.
- Q: What is the function of the MAX17312G+?
- A: It is a fuel gauge IC for battery monitoring.
- Q: What battery chemistry does it support?
- A: It supports Lithium Ion/Polymer batteries.
- Q: How many cells can it monitor?
- A: It is designed for single-cell (1) battery packs.
- Q: What protection features are included?
- A: It includes Over Current, Over Temperature, Over/Under Voltage, and Short Circuit protection.
- Q: What interface does it use?
- A: It uses the 1-Wire interface.
- Q: What is the temperature range and package?
- A: It operates from -40°C to 85°C and is available in a 14-WFDFN Exposed Pad package.
