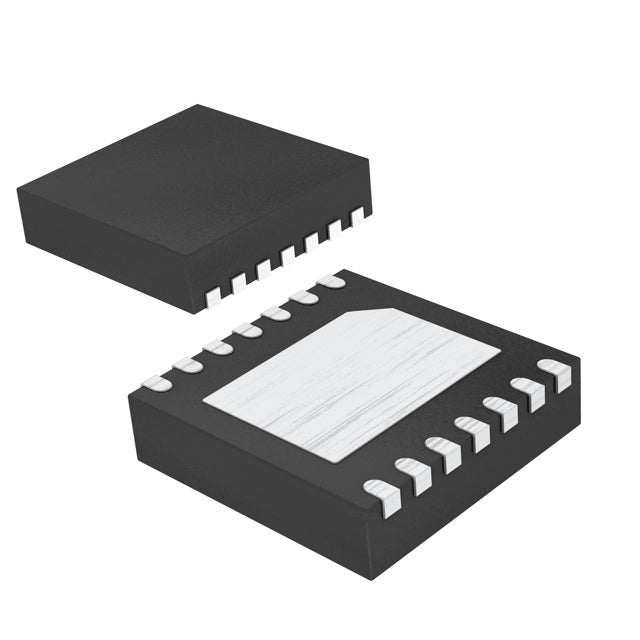

Analog Devices Inc./Maxim Integrated MAX17312G+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $11.60 | $11.60 |
| 15+ | $2.67 | $40.05 |
| 25+ | $2.61 | $65.25 |
| 50+ | $2.47 | $123.50 |
| 100+ | $2.18 | $218.00 |
| N+ | $0.44 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | ModelGauge™ |
| Packaging | Tape & Reel (TR) | |
| Function | Fuel Gauge |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Fault Protection | Over Current, Over Temperature, Over/Under Voltage, Short Circuit |
| Interface | 1-Wire |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-WFDFN Exposed Pad |
| Supplier Device Package | 14-TDFN (3x3) |
| ROHS |  |
The MAX17312G+T is a high-performance fuel gauge from Analog Devices, tailored for single-cell Lithium Ion/Polymer batteries. It offers comprehensive protection against over-current, over-temperature, over/under-voltage, and short-circuit conditions. Utilizing a 1-Wire interface, it simplifies system integration while delivering accurate battery data. The device is packaged in a compact 14-WFDFN and operates across a wide -40°C to 85°C temperature range, making it suitable for diverse portable applications.
- Robust Safety Features: Includes over-current, over-temperature, over/under-voltage, and short-circuit protection for enhanced battery safety.
- Simple 1-Wire Interface: Reduces pin count and simplifies PCB layout, making it easier to integrate into space-constrained designs.
- Wide Operating Range: Functions reliably from -40°C to 85°C, suitable for industrial and outdoor applications.
- Accurate Monitoring: Provides precise fuel gauging for single-cell Li-Po batteries, optimizing battery usage and lifespan.
- Compact Package: The 14-WFDFN Exposed Pad package is ideal for miniaturized electronic devices.
Smart Wearables
Ideal for smartwatches and fitness bands, the MAX17312G+T provides accurate fuel gauging for single-cell Li-Po batteries, with 1-Wire interface simplifying connectivity in compact designs.
Medical Implants & Monitors
In portable medical devices, this fuel gauge ensures reliable battery status reporting and includes critical protection features to prevent over-temperature and over-current faults.
Portable Instrumentation
For field instruments, the wide -40°C to 85°C range ensures operation in harsh outdoor conditions, while the 1-Wire interface allows for minimal pin count and easy isolation.
Consumer Electronics Accessories
In devices like stylus pens or wireless earbuds, the compact 14-WFDFN package and low overhead make it an excellent choice for monitoring battery health and ensuring safe charging.
Asset Tracking Devices
For GPS trackers, this IC provides robust protection and accurate state-of-charge data, ensuring long-lasting and safe operation in various environmental conditions.
Single-Cell UPS Systems
In small backup power units, the MAX17312G+T offers essential protection and monitoring, helping to maintain battery integrity and provide reliable backup power.
- Q: What is the function of the MAX17312G+T?
- A: It is a fuel gauge IC for battery monitoring.
- Q: What battery chemistry does it support?
- A: It is designed for Lithium Ion/Polymer batteries.
- Q: How many cells can it monitor?
- A: It supports single-cell (1) battery configurations.
- Q: What protections are included?
- A: It features Over Current, Over Temperature, Over/Under Voltage, and Short Circuit protection.
- Q: What interface does it use?
- A: It communicates via the 1-Wire interface.
- Q: What is the temperature range and package?
- A: It operates from -40°C to 85°C and is housed in a 14-WFDFN Exposed Pad package.
