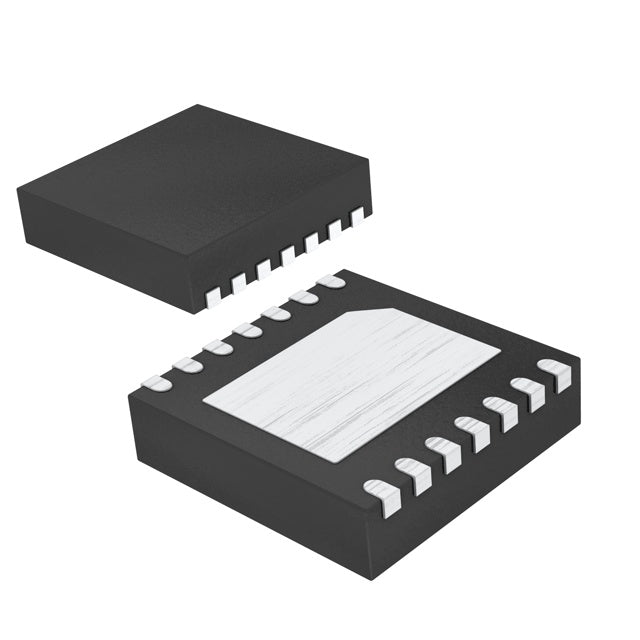

Analog Devices Inc./Maxim Integrated MAX17313G+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.15 | $8.15 |
| 15+ | $1.88 | $28.20 |
| 25+ | $1.84 | $46.00 |
| 50+ | $1.73 | $86.50 |
| 100+ | $1.53 | $153.00 |
| N+ | $0.31 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | ModelGauge™ |
| Packaging | Tray | |
| Function | Fuel Gauge |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Fault Protection | Over Current, Over Temperature, Over/Under Voltage, Short Circuit |
| Interface | 1-Wire |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-WFDFN Exposed Pad |
| Supplier Device Package | 14-TDFN (3x3) |
| ROHS |  |
The MAX17313G+ from Analog Devices is a sophisticated fuel gauge IC engineered for single-cell Lithium Ion/Polymer batteries. It integrates comprehensive fault protection including Over Current, Over Temperature, Over/Under Voltage, and Short Circuit detection. Featuring a 1-Wire interface and a compact 14-WFDFN package, this device operates across an industrial temperature range of -40°C to 85°C, making it suitable for portable electronics, wearables, and industrial handheld devices requiring precise battery monitoring.
- Accurate Fuel Gauging: Provides precise state-of-charge data for single-cell Li-Ion/Polymer batteries, extending device runtime.
- Comprehensive Protection: Integrates Over Current, Over Temperature, Over/Under Voltage, and Short Circuit safeguards in one IC.
- Simple 1-Wire Interface: Reduces pin count and simplifies PCB layout, ideal for compact designs.
- Industrial Temperature Range: Reliable operation from -40°C to 85°C suits demanding environments.
Smartphone Battery Packs
The MAX17313G+ fuel gauge with 1-Wire interface enables accurate state-of-charge reporting in compact single-cell Lithium Ion/Polymer smartphone batteries, optimizing runtime and user experience.
Portable Medical Devices
With its -40°C to 85°C operating range and robust Over/Under Voltage protection, this IC is suitable for single-cell medical monitors that require reliable battery status in varying clinical environments.
Wearable Electronics
Its small 14-WFDFN package and low pin count make it ideal for space-constrained wearables, providing essential fuel gauging and protection for single-cell Li-Po batteries.
Industrial Handheld Terminals
The device's Over Temperature and Short Circuit protection ensures safe operation of rugged handheld scanners and PDAs powered by single-cell Lithium Ion batteries in demanding industrial settings.
Portable Power Banks
For single-cell power banks, the MAX17313G+ offers precise fuel gauging to display remaining capacity accurately, while its protection features safeguard against common fault conditions.
