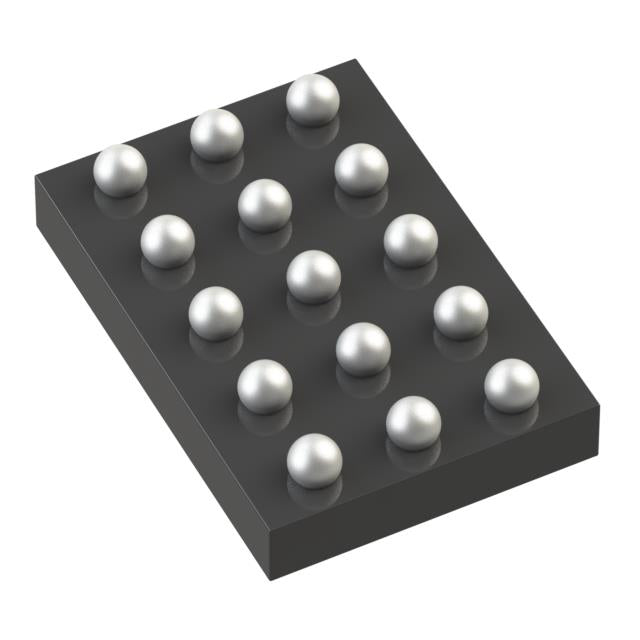

Analog Devices Inc./Maxim Integrated MAX17313X+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.50 | $7.50 |
| 15+ | $1.73 | $25.95 |
| 25+ | $1.69 | $42.25 |
| 50+ | $1.60 | $80.00 |
| 100+ | $1.41 | $141.00 |
| N+ | $0.28 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | ModelGauge™ |
| Packaging | Tape & Reel (TR) | |
| Function | Fuel Gauge |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Fault Protection | Over Current, Over Temperature, Over Voltage, Short Circuit |
| Interface | 1-Wire |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 15-WFBGA, WLBGA |
| Supplier Device Package | 15-WLP (1.68x2.45) |
| ROHS |  |
The MAX17313X+T from Analog Devices is a sophisticated Fuel Gauge IC for single-cell Lithium Ion/Polymer batteries. It integrates comprehensive protection features including Over Current, Over Temperature, Over Voltage, and Short Circuit. Using the 1-Wire interface, it provides accurate state-of-charge data. This IC is designed for demanding applications, operating from -40°C to 85°C, and is available in a 15-WFBGA, WLBGA package.
- Accurate Fuel Gauging: Provides precise state-of-charge information for reliable runtime estimation.
- Comprehensive Protection: Integrates Over Current, Over Temperature, Over Voltage, and Short Circuit protection.
- Wide Temperature Range: Operates from -40°C to 85°C, suitable for industrial and outdoor use.
- Simple 1-Wire Interface: Enables easy communication with the host system.
- Compact Package: The 15-WFBGA, WLBGA package is ideal for space-constrained designs.
High-End Smartphones and Tablets
Provides precise fuel gauging and comprehensive protection for single-cell Li-Po batteries in premium mobile devices.
Portable Medical Devices
Ensures accurate battery status and safety in single-cell medical devices, critical for patient monitoring equipment.
Drones and RC Hobby
Monitors the single-cell Li-Po packs used in small drones and RC vehicles, providing accurate runtime and protection against over-discharge.
Industrial Handhelds
With a -40°C to 85°C range, it is suitable for rugged handheld scanners and PDAs used in warehouses and field service.
Wearable Technology
Ideal for smartwatches and fitness trackers, offering accurate battery percentage and protection in a compact form factor.
- Q: What is the function of the MAX17313X+T?
- A: It is a Fuel Gauge IC that provides accurate state-of-charge information.
- Q: What battery chemistry does it support?
- A: It is designed for Lithium Ion/Polymer batteries.
- Q: How many cells can it monitor?
- A: It is designed for single-cell (1) battery configurations.
- Q: What fault protections are included?
- A: It provides Over Current, Over Temperature, Over Voltage, and Short Circuit protection.
- Q: What communication interface does it use?
- A: It communicates via the 1-Wire interface.
- Q: What is the operating temperature range?
- A: It operates over a temperature range of -40°C to 85°C (TA).
