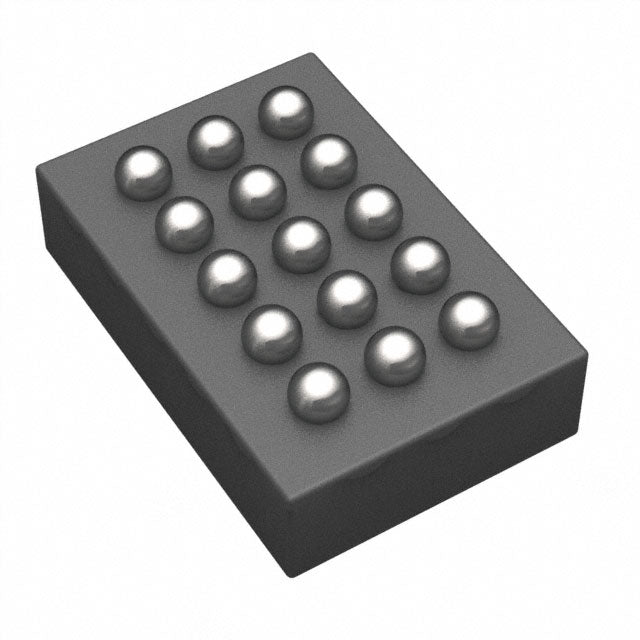

Analog Devices Inc./Maxim Integrated MAX17332X22+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.55 | $13.55 |
| 15+ | $3.12 | $46.80 |
| 25+ | $3.05 | $76.25 |
| 50+ | $2.88 | $144.00 |
| 100+ | $2.54 | $254.00 |
| N+ | $0.51 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | ModelGauge™ |
| Packaging | Tape & Reel (TR) | |
| Function | Multi-Function Controller |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Fault Protection | Over Current, Over Temperature, Over/Under Voltage, Short Circuit |
| Interface | I2C |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 15-WFBGA, WLBGA |
| Supplier Device Package | 15-WLP (1.91x2.45) |
| ROHS |  |
The MAX17332X22+T from Analog Devices is a multi-function controller for single-cell Lithium Ion/Polymer battery management. It integrates fuel gauging and protection features including Over Current, Over Temperature, Over/Under Voltage, and Short Circuit. With an I2C interface and a compact 15-WFBGA package, it provides a complete battery management solution for advanced portable devices.
- Integrated Multi-Function: Combines fuel gauging and protection in one controller, reducing component count and PCB space.
- Comprehensive Protection: Includes Over Current, Over Temperature, Over/Under Voltage, and Short Circuit protection for maximum safety.
- Industrial Temperature Range: Operates from -40°C to 85°C, suitable for harsh environments.
- Standard I2C Interface: Enables easy communication with host processors for data logging and configuration.
Advanced Smartphones
Provides comprehensive battery management for single-cell Lithium Ion/Polymer batteries in premium smartphones, combining fuel gauging and protection in a single multi-function controller.
Tablets and 2-in-1 Laptops
Ideal for portable computing devices, offering precise battery monitoring and robust protection against over-current, over-temperature, and short circuits, ensuring safe operation during intensive tasks.
Portable Gaming Consoles
Supports high-drain applications like handheld gaming devices, where accurate fuel gauging and over-current protection are essential for performance and battery longevity.
Drones and UAVs
Used in compact drones, the multi-function controller provides critical battery safety and monitoring, with I2C interface for telemetry and a wide temperature range for outdoor flight conditions.
Industrial Handhelds
Applied in rugged PDAs and barcode scanners, ensuring reliable battery management in demanding environments with -40°C to 85°C operation and comprehensive fault protection.
- Q: What is the function of the MAX17332X22+T?
- A: It is a multi-function controller for battery management.
- Q: What battery chemistry does it support?
- A: It supports Lithium Ion/Polymer batteries.
- Q: How many cells can it manage?
- A: It is designed for 1 cell.
- Q: What fault protection features are included?
- A: It includes Over Current, Over Temperature, Over/Under Voltage, and Short Circuit protection.
- Q: What interface does it use?
- A: It uses the I2C interface.
- Q: What is the operating temperature range?
- A: The operating temperature range is -40°C to 85°C (TA).
