Analog Devices Inc./Maxim Integrated MAX17435ETG+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $14.25 | $14.25 |
| 15+ | $13.80 | $207.00 |
| 25+ | $13.50 | $337.50 |
| 50+ | $12.75 | $637.50 |
| 100+ | $11.25 | $1,125.00 |
| N+ | $2.25 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tube |
| Battery Chemistry | Multi-Chemistry |
| Number of Cells | 2 ~ 4 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | Over Voltage |
| Charge Current - Max | 7A |
| Battery Pack Voltage | 16.8V |
| Voltage - Supply (Max) | 26V |
| Interface | I2C |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

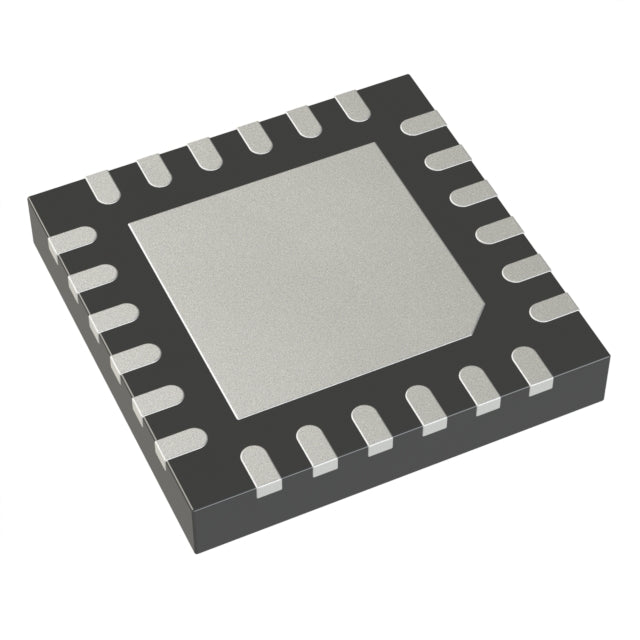

| Package / Case | 24-WFQFN Exposed Pad |
| Supplier Device Package | 24-TQFN (4x4) |
The MAX17435ETG+ from Analog Devices Inc./Maxim Integrated is a sophisticated multi-chemistry battery charger featuring an I2C interface for advanced system control. It supports 2 to 4 series cells and provides a charge current up to 7A, with a battery voltage of 16.8V. The charger includes Over Voltage protection to ensure safe operation. Designed for a wide temperature range of -40°C to 85°C, it is suitable for a variety of portable electronics. The compact 24-WFQFN package is ideal for space-constrained applications.
- Digital Control: I2C interface allows for precise programming and monitoring of the charging process.
- High Charge Current: Supports up to 7A for fast charging of large battery packs.
- Wide Operating Range: Functions reliably from -40°C to 85°C for versatile applications.
- Integrated Protection: Over Voltage protection enhances system safety and battery longevity.
Smartphones and Tablets
Provides fast, I2C-controlled charging for 2-4 cell batteries in high-end mobile devices.
Ultrabooks and Laptops
Enables efficient charging of multi-cell packs with programmable settings via I2C for optimized power management.
Portable Gaming Consoles
Delivers high current (7A) for rapid charging of high-capacity batteries in handheld gaming systems.
Digital Cameras and Drones
Offers reliable charging for professional camera batteries and drone packs with precise voltage control.
Medical Monitoring Devices
Provides safe and controlled charging for portable medical equipment, with I2C for system integration.
- Q: What battery chemistries are supported by the MAX17435ETG+?
- A: It is a multi-chemistry charger, compatible with various battery types.
- Q: How many cells can it charge?
- A: It supports 2 to 4 series cells.
- Q: What is the maximum charge current?
- A: The maximum charge current is 7A.
- Q: What is the battery voltage?
- A: The battery voltage is 16.8V.
- Q: What fault protection is included?
- A: It includes Over Voltage protection.
- Q: What interface does it use?
- A: It uses an I2C interface for control and monitoring.
MAX17435ETG+.pdf
