Analog Devices Inc./Maxim Integrated MAX17497BATE+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 7.49 | Dhs. 7.49 |
| 15+ | Dhs. 7.27 | Dhs. 109.05 |
| 25+ | Dhs. 7.11 | Dhs. 177.75 |
| 50+ | Dhs. 6.72 | Dhs. 336.00 |
| 100+ | Dhs. 5.93 | Dhs. 593.00 |
| N+ | Dhs. 1.19 | Price Inquiry |
Request Quote / Inquiry
MAX17497BATE+T Isolated DC-DC Controller
The MAX17497BATE+T from Analog Devices (Maxim Integrated) is a high-performance isolated DC-DC controller designed for boost and flyback topologies. This versatile power management IC operates from a wide 4.5V to 36V input range with 500kHz switching frequency, making it ideal for industrial, automotive, telecommunications, and medical applications requiring galvanic isolation.
Key Features
- Wide input voltage range: 4.5V to 36V
- Isolated boost and flyback topology support
- High efficiency with 92% maximum duty cycle
- 500kHz switching frequency for compact design
- Integrated fault protection: current limiting and over-voltage protection
- Soft-start and enable control features
- Extended operating temperature: -40°C to 125°C (TJ)

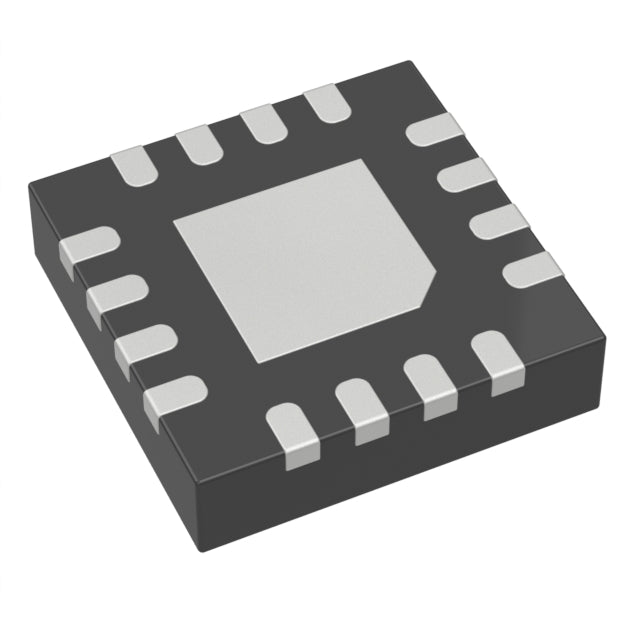

- Compact 16-TQFN (3x3mm) surface mount package
- RoHS compliant
Applications
- Isolated power supplies for industrial equipment
- Automotive electronics requiring isolation
- Telecommunications infrastructure
- Medical device power systems
- Battery-powered systems with wide input range
Why Choose MAX17497BATE+T?
This controller IC delivers reliable isolated power conversion with comprehensive protection features and wide operating range. The compact 16-TQFN package enables space-efficient designs while maintaining excellent thermal performance. With full RoHS compliance and extended temperature rating, it meets demanding industrial and automotive requirements for long lifecycle support and traceability.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Boost, Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 36V |
| Duty Cycle | 92% |
| Frequency - Switching | 500kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Voltage |
| Control Features | EN, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-TQFN (3x3) |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
