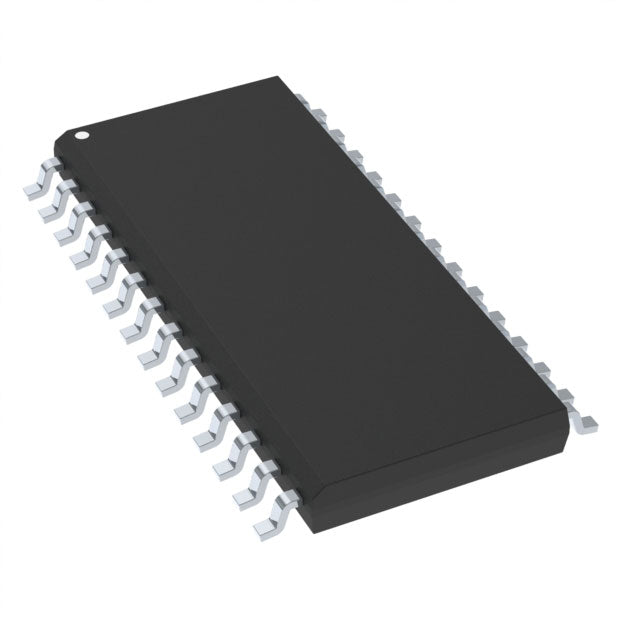

Analog Devices Inc./Maxim Integrated MAX1758EAI+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.69 | $10.69 |
| 15+ | $10.35 | $155.25 |
| 25+ | $10.13 | $253.25 |
| 50+ | $9.56 | $478.00 |
| 100+ | $8.44 | $844.00 |
| N+ | $1.69 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 ~ 4 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Timer |
| Fault Protection | - |
| Charge Current - Max | 1.5A |
| Battery Pack Voltage | 19V (Max) |
| Voltage - Supply (Max) | 28V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
| ROHS |  |
The Analog Devices MAX1758EAI+T is a versatile linear battery charger for multi-cell Lithium Ion battery packs, supporting 1 to 4 cells. It provides a charge current of up to 1.5A and can handle battery pack voltages up to 19V. This charger is designed for reliable operation over an industrial temperature range of -40°C to 85°C. It is available in a 28-SSOP package, making it suitable for a wide range of portable and industrial applications.
- Multi-Cell Support: Charges 1 to 4 series Li-Ion cells, offering flexibility for various battery pack designs.
- High Voltage Capability: Supports battery pack voltages up to 19V for demanding applications.
- Industrial Temperature Range: Operates reliably from -40°C to 85°C.
- Proven Package: Available in a standard 28-SSOP package for easy integration.
Multi-Cell Li-Ion Battery Packs
Charge 2 to 4 series-connected Li-Ion cells in battery packs for portable equipment, delivering up to 1.5A current.
Portable Instruments
Power battery charging in field instruments and data loggers that require higher voltage packs up to 19V.
Medical Equipment
Use in portable medical devices with multi-cell Li-Ion batteries, ensuring reliable charging over a wide temperature range.
Industrial Handhelds
Charge batteries in rugged handheld computers and barcode scanners operating in industrial environments.
Communication Devices
Support battery charging in two-way radios and portable communication gear with 1-4 cell configurations.
- Q: What battery chemistry does the MAX1758EAI+T support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells can it charge?
- A: It supports 1 to 4 cells in series.
- Q: What is the maximum charge current?
- A: The maximum charge current is 1.5A.
- Q: What is the maximum battery pack voltage?
- A: The maximum battery pack voltage is 19V.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C (TA).
- Q: What package is it available in?
- A: It is available in a 28-SSOP package.
