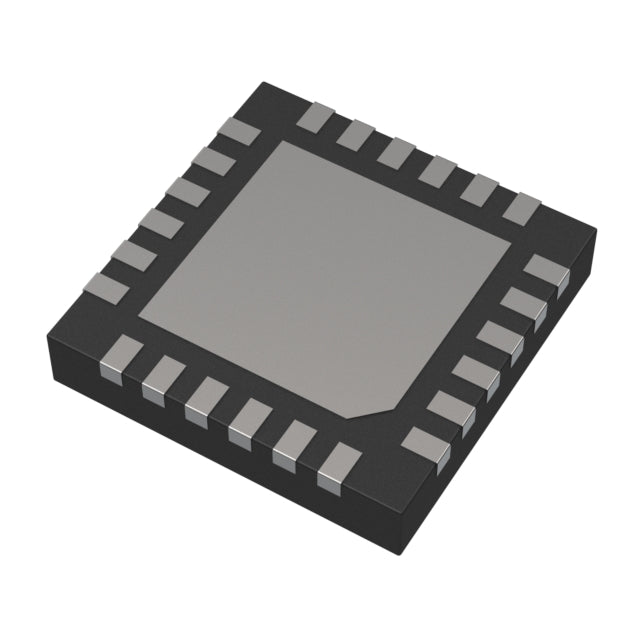

Analog Devices Inc./Maxim Integrated MAX17702ATG+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.24 | $6.24 |
| 15+ | $6.04 | $90.60 |
| 25+ | $5.91 | $147.75 |
| 50+ | $5.58 | $279.00 |
| 100+ | $4.93 | $493.00 |
| N+ | $0.99 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tray |
| Battery Chemistry | Lead Acid |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current, Timer, Voltage |
| Fault Protection | Over Current, Over Temperature, Over Voltage, Short Circuit |
| Charge Current - Max | - |
| Battery Pack Voltage | 1.25V ~ 21.9V |
| Voltage - Supply (Max) | 60V |
| Interface | - |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 24-WFQFN Exposed Pad |
| Supplier Device Package | 24-TQFN-EP (4x4) |
| ROHS |  |
The MAX17702ATG+ is a highly integrated battery charger controller from Analog Devices, specifically engineered for lead-acid battery applications. It supports a single cell with a wide battery voltage range from 1.25V to 21.9V. The device is equipped with robust fault protection including over current, over temperature, over voltage, and short circuit detection, ensuring safe and reliable operation. Housed in a compact 24-WFQFN package, it is designed for demanding industrial and automotive environments, operating effectively across a temperature range of -40°C to 125°C.
- Reliable in extreme conditions: Operates from -40°C to 125°C, making it ideal for industrial and automotive applications.
- Comprehensive safety: Integrated Over Current, Over Temperature, Over Voltage, and Short Circuit protection ensures battery and system safety.
- Versatile voltage support: Handles a wide battery voltage range from 1.25V to 21.9V, accommodating various lead-acid battery types.
- Space-saving design: The compact 24-WFQFN Exposed Pad package is suitable for space-constrained designs.
Industrial Power Backup Systems
With a wide operating temperature range of -40°C to 125°C, the MAX17702ATG+ is suitable for industrial environments where lead-acid backup batteries are used for uninterrupted power supply in harsh conditions.
Telecommunication Infrastructure
Lead-acid batteries are standard in telecom base stations. This charger's robust fault protection (over current, over voltage, short circuit) ensures reliable charging and longevity of the battery bank in remote or demanding locations.
Automotive Auxiliary Power
For vehicles with auxiliary lead-acid batteries, this IC provides a dependable charging solution. Its wide voltage range (1.25V to 21.9V) accommodates various battery configurations used in automotive systems.
Renewable Energy Storage
In off-grid solar or wind power systems, lead-acid batteries store energy. The MAX17702ATG+ can manage the charging process, ensuring safe and efficient energy storage in outdoor, uncontrolled temperature settings.
Uninterruptible Power Supplies (UPS)
UPS systems rely on lead-acid batteries for emergency power. This charger's comprehensive protection features safeguard the battery and the system from faults, ensuring readiness when needed.
- Q: What battery chemistry does the MAX17702ATG+ support?
- A: The MAX17702ATG+ is designed for Lead Acid batteries.
- Q: How many battery cells can this charger manage?
- A: It supports 1 cell configuration.
- Q: What is the battery pack voltage range?
- A: The battery voltage range is 1.25V to 21.9V.
- Q: What fault protection features are included?
- A: It includes Over Current, Over Temperature, Over Voltage, and Short Circuit protection.
- Q: What is the operating temperature range?
- A: The operating temperature range is -40°C to 125°C (TA).
- Q: What package is the MAX17702ATG+ available in?
- A: It comes in a 24-WFQFN Exposed Pad package.
