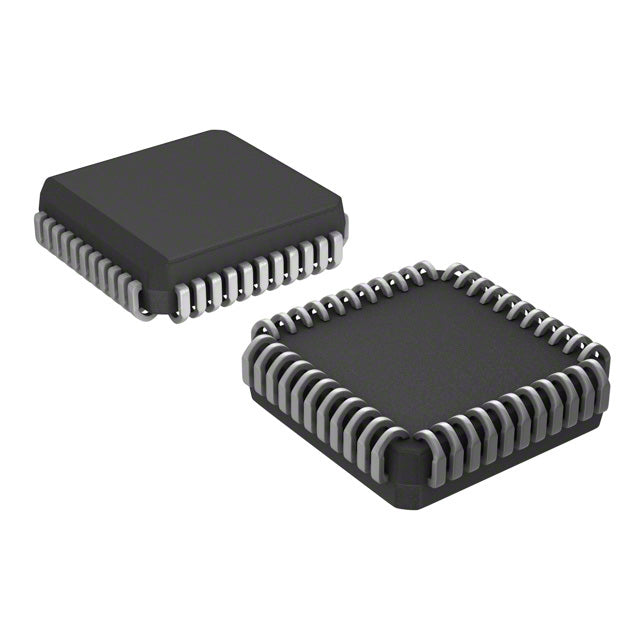

MAX180CCQH+D - High-Performance 12-Bit Data Acquisition System

The MAX180CCQH+D from Analog Devices Inc./Maxim Integrated is a precision 12-bit, 8-channel data acquisition system (DAS) designed for high-speed analog-to-digital conversion applications. With a 100kSPS sampling rate and parallel data interface, this IC delivers reliable performance for industrial control, instrumentation, and embedded system designs requiring multi-channel analog input processing.

Key Features

• 12-bit resolution for accurate signal conversion
• 8 input channels for multi-signal acquisition
• 100kSPS sampling rate for real-time data capture
• Parallel data interface for fast communication
• Surface mount 44-PLCC package for compact board design
• RoHS compliant for environmental standards
• Operating temperature range: 0°C to 70°C
• Multi-voltage supply: 5V, -12V, -15V

Applications

Ideal for industrial automation, process control, medical instrumentation, test and measurement equipment, and embedded data acquisition systems requiring multi-channel analog input with high precision and speed.

Full Traceability & Authorized Distribution

We provide 100% traceable components with manufacturer documentation, ensuring long lifecycle support for aerospace, automotive, industrial, medical, and telecom applications. All products ship with full RoHS/REACH compliance certification.

Complete Technical Specifications

Product attributes	Property Value
Manufacturer	Analog Devices Inc./Maxim Integrated
Product Series
Packaging	Factory | Tube
Type	Data Acquisition System (DAS)
Number of Channels	8
Resolution (Bits)	12 b
Sampling Rate (Per Second)	100k
Data Interface	Parallel
Voltage Supply Source	Analog and Digital
Voltage - Supply	5V, -12V, -15V
Operating Temperature	0°C ~ 70°C
Mounting Type	Surface Mount
Grade	-
Qualification	-
Package / Case	44-LCC (J-Lead)
Supplier Device Package	44-PLCC (16.59x16.59)
