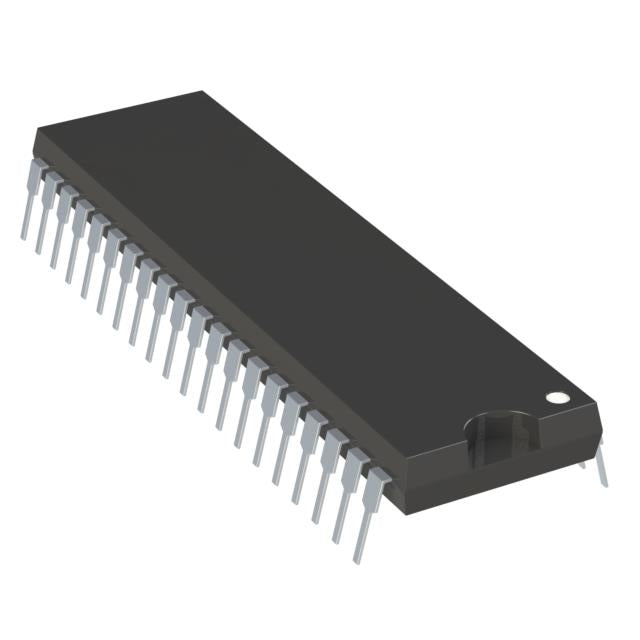

Analog Devices Inc./Maxim Integrated MAX181ACPL
Regular price
$27.23
Regular price
$28.66
Sale price
$27.23
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $27.23 | $27.23 |
| 15+ | $26.37 | $395.55 |
| 25+ | $25.79 | $644.75 |
| 50+ | $24.36 | $1,218.00 |
| 100+ | $21.50 | $2,150.00 |
| N+ | $4.30 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Marketplace | Tube |
| Type | Data Acquisition |
| Number of Channels | 6 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 100k |
| Data Interface | Parallel |
| Voltage Supply Source | Dual ± |
| Voltage - Supply | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 40-DIP (0.600", 15.24mm) |
| Supplier Device Package | 40-PDIP |
The MAX181ACPL is a high-performance 12-bit data acquisition system from Analog Devices Inc./Maxim Integrated, designed for precision analog-to-digital conversion in industrial, instrumentation, and embedded applications. Featuring 6 input channels and a 100kSPS sampling rate, this IC delivers reliable performance across a 0°C to 70°C operating range.
Key Features:
- 12-bit resolution for accurate signal conversion
- 6-channel multiplexed input
- 100kSPS sampling rate
- Parallel data interface for fast communication
- Dual ± voltage supply
- Through-hole 40-DIP package for easy prototyping and production
Applications: Process control, medical instrumentation, test and measurement equipment, industrial automation, and multi-channel data logging systems.
All units ship with full manufacturer traceability, RoHS/REACH compliance documentation, and long lifecycle support for design-in confidence.
MAX181ACPL.pdf
×
