MAX181BCPL+

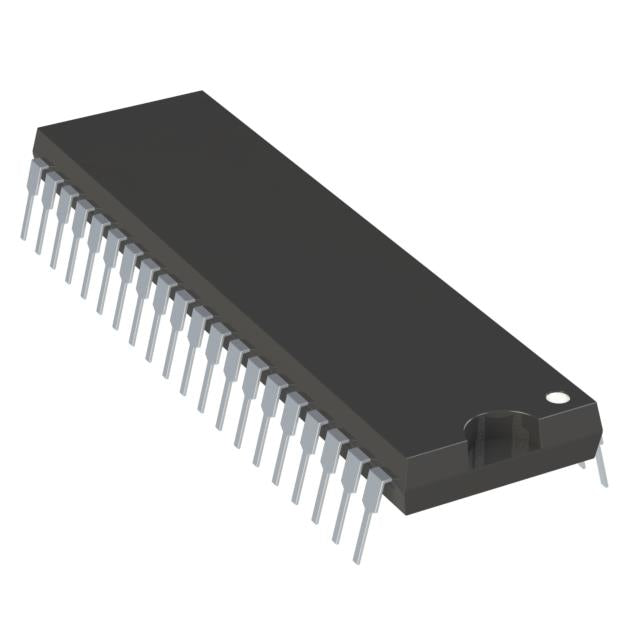

MAX181BCPL+ - 12-Bit Data Acquisition System IC

The MAX181BCPL+ from Analog Devices Inc./Maxim Integrated is a high-performance 6-channel data acquisition system (DAS) featuring 12-bit resolution and 100kSPS sampling rate. Designed for precision analog-to-digital conversion applications, this IC offers parallel data interface and operates across industrial temperature ranges (0°C to 70°C).

Key Features

• 6-channel multiplexed input for versatile signal acquisition
• 12-bit resolution ensures accurate data conversion
• 100kSPS sampling rate for real-time applications
• Parallel data interface for fast communication
• Dual power supply: 5V digital, ±12V/±15V analog
• Through-hole 40-DIP package for reliable PCB mounting
• RoHS compliant for environmental compliance

Applications

Ideal for industrial control systems, instrumentation, medical equipment, automotive diagnostics, and multi-channel sensor monitoring where precision analog signal acquisition is critical.

Quality & Traceability

As an authorized distributor, we provide 100% traceable components with full manufacturer documentation, RoHS/REACH compliance certification, and long lifecycle availability for design-in confidence in aerospace, automotive, industrial, medical, and telecom applications.

Complete Technical Specifications

Product attributes	Property Value
Manufacturer	Analog Devices Inc./Maxim Integrated
Product Series
Packaging	Bulk |
Type	Data Acquisition System (DAS)
Number of Channels	6
Resolution (Bits)	12 b
Sampling Rate (Per Second)	100k
Data Interface	Parallel
Voltage Supply Source	Analog and Digital
Voltage - Supply	5V, -12V, -15V
Operating Temperature	0°C ~ 70°C
Mounting Type	Through Hole
Grade	-
Qualification	-
Package / Case	40-DIP (0.600", 15.24mm)
Supplier Device Package	40-PDIP
ROHS
