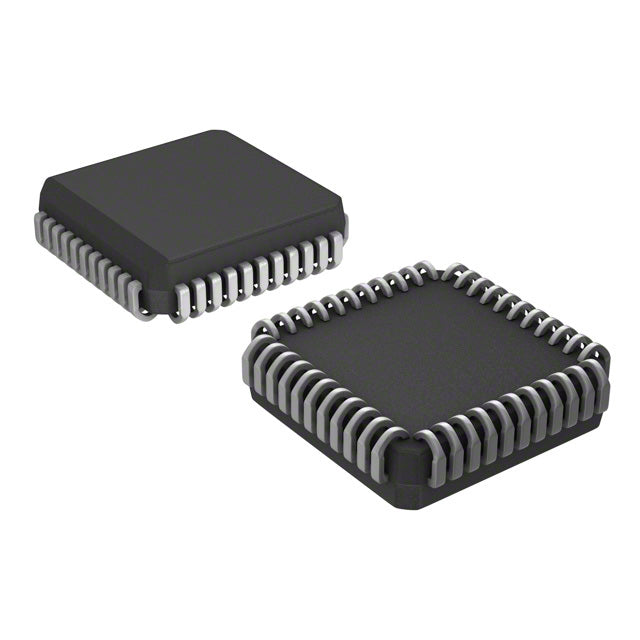

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Analog Devices Inc./Maxim Integrated
MAX181CEQH+D
MAX181CEQH+D
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 62.64 AED | Dhs. 62.64 AED |
| 15+ | Dhs. 60.66 AED | Dhs. 909.90 AED |
| 25+ | Dhs. 59.34 AED | Dhs. 1,483.50 AED |
| 50+ | Dhs. 56.04 AED | Dhs. 2,802.00 AED |
| 100+ | Dhs. 49.45 AED | Dhs. 4,945.00 AED |
| N+ | Dhs. 9.89 AED | Price Inquiry |
Couldn't load pickup availability
Apply for PCBA engineering assistance
MAX181CEQH+D - High-Performance 12-Bit Data Acquisition System
The MAX181CEQH+D from Analog Devices Inc./Maxim Integrated is a precision 6-channel data acquisition system (DAS) featuring 12-bit resolution and 100kSPS sampling rate. Designed for industrial, automotive, and high-reliability applications requiring accurate analog-to-digital conversion with parallel data interface.
Key Features:
- 12-bit resolution for precise measurements
- 6 independent input channels
- 100kSPS sampling rate for fast data acquisition
- Parallel data interface for easy integration
- Wide operating temperature range: -40°C to 85°C
- Surface mount 44-PLCC package
- RoHS compliant for environmental compliance
Applications:
Ideal for industrial control systems, medical instrumentation, automotive diagnostics, test and measurement equipment, and multi-channel sensor monitoring applications requiring long-term availability and full traceability.
Complete Technical Specifications:
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Type | Data Acquisition System (DAS) |
| Number of Channels | 6 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 100k |
| Data Interface | Parallel |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 5V, -12V, -15V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 44-LCC (J-Lead) |
| Supplier Device Package | 44-PLCC (16.59x16.59) |
| ROHS |  |
Authorized Distributor: We provide 100% traceable, manufacturer-certified components with full documentation and long lifecycle support for design-in confidence.
Datasheets:
MAX181CEQH+D.pdf
