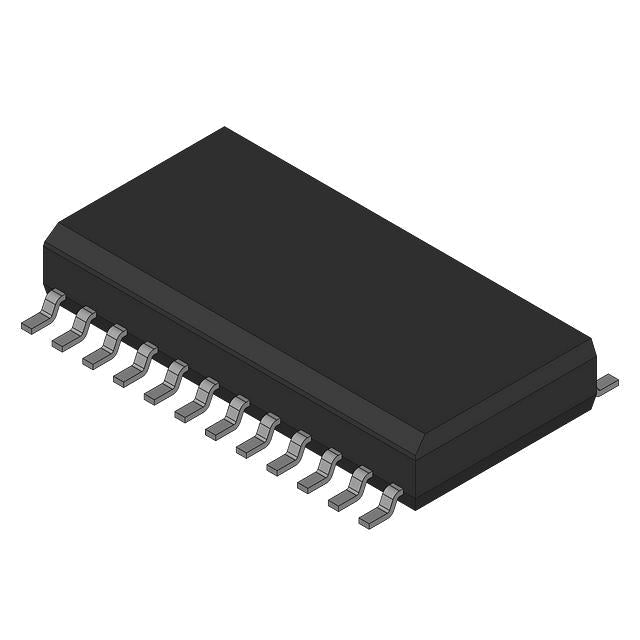

Analog Devices Inc./Maxim Integrated MAX183BEWG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $64.12 | $64.12 |
| 15+ | $14.75 | $221.25 |
| 25+ | $14.43 | $360.75 |
| 50+ | $13.63 | $681.50 |
| 100+ | $12.02 | $1,202.00 |
| N+ | $2.40 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 2.5M |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | -16.5V ~ -10.8V, 4.75V ~ 5.25V |
| Voltage - Supply, Digital | -16.5V ~ -10.8V, 4.75V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
The MAX183BEWG is a 12-bit, single-channel analog-to-digital converter (ADC) from Analog Devices, optimized for high-speed data conversion. It offers a sampling rate of 2.5 MSPS and a parallel interface, ensuring rapid data transfer to host systems. This ADC is designed for applications requiring a balance of speed and resolution, such as medical imaging, industrial inspection, and test equipment. It operates over an extended temperature range of -40°C to +85°C and is housed in a 24-SOIC package, making it suitable for a wide range of industrial and scientific applications.
- Fast Sampling Rate: 2.5 MSPS enables capture of high-frequency signals without aliasing.
- Parallel Output: Provides high-throughput data transfer, ideal for real-time processing.
- 12-Bit Resolution: Ensures accurate representation of analog signals with low distortion.
- Wide Temperature Range: -40°C to +85°C operation suits industrial environments.
High-Speed Data Logging
The MAX183BEWG's 2.5 MSPS sampling rate allows for high-fidelity capture of fast-changing signals in data logging systems, such as vibration analysis or power quality monitoring.
Medical Ultrasound Systems
In ultrasound equipment, the high speed and 12-bit resolution enable precise digitization of echo signals, contributing to clearer imaging and better diagnostic accuracy.
Industrial Machine Vision
For high-speed inspection systems, this ADC can digitize signals from line-scan cameras or photodetectors at 2.5 MSPS, enabling real-time defect detection on production lines.
Test and Measurement Equipment
In benchtop multimeters or waveform digitizers, the parallel interface and high sampling rate allow for fast, accurate measurements of AC and DC signals.
Communication Systems
The MAX183BEWG can be used in baseband processing for communication systems, digitizing I/Q signals with sufficient speed for various modulation schemes.
Scientific Research Instruments
In physics experiments, the high-speed conversion capability is essential for capturing transient events, such as particle detector pulses, with high temporal resolution.
- Q: What type of ADC is the MAX183BEWG?
- A: It is a 12-bit, single-channel analog-to-digital converter (ADC) with a parallel interface.
- Q: What is the resolution of the MAX183BEWG?
- A: The resolution is 12 bits, providing 4096 output codes.
- Q: What is the maximum sampling rate?
- A: The MAX183BEWG supports a sampling rate of 2.5 MSPS (2.5 million samples per second).
- Q: How many channels does it have?
- A: It has a single input channel (1 channel).
- Q: What interface does it use?
- A: It uses a parallel interface for data output.
- Q: What is the operating temperature range?
- A: It operates from -40°C to +85°C and is available in a 24-SOIC package.
