Analog Devices Inc./Maxim Integrated MAX184BCWG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $27.60 | $27.60 |
| 15+ | $26.73 | $400.95 |
| 25+ | $26.15 | $653.75 |
| 50+ | $24.69 | $1,234.50 |
| 100+ | $21.79 | $2,179.00 |
| N+ | $4.36 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 2.5M |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | -16.5V ~ -10.8V, 4.75V ~ 5.25V |
| Voltage - Supply, Digital | -16.5V ~ -10.8V, 4.75V ~ 5.25V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |

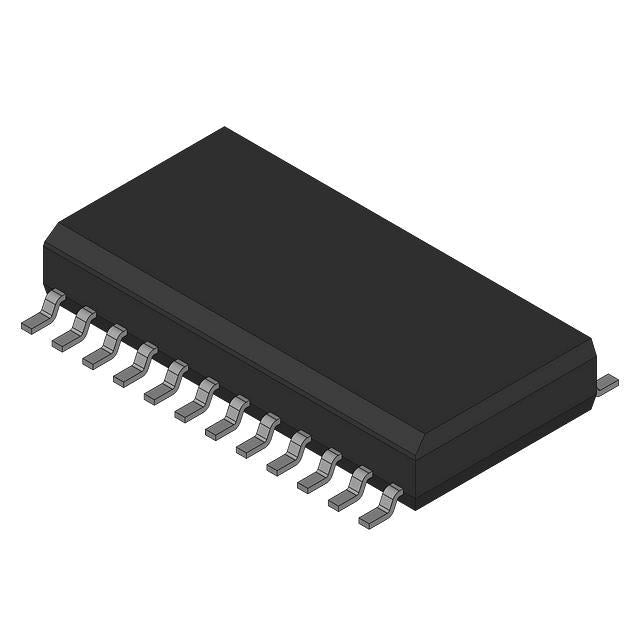

| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
The MAX184BCWG is a high-speed 12-bit analog-to-digital converter from Analog Devices Inc./Maxim Integrated, designed for fast and accurate signal conversion. It features a single channel with a successive approximation architecture, achieving a sampling rate of 2.5M SPS. The device uses a parallel interface for high-throughput data transfer to microprocessors or DSPs. It requires an external reference for operation. Packaged in a 24-pin SOIC (0.295-inch width), it operates over a temperature range of 0°C to +70°C. This ADC is ideal for high-speed data acquisition, digital oscilloscopes, industrial imaging, and communication systems.
- High-Speed Sampling: 2.5M SPS enables capture of fast signals, suitable for oscilloscopes and imaging.
- Parallel Interface: Provides high data throughput with minimal latency for real-time processing.
- 12-Bit Resolution: Balances speed and accuracy for a wide range of applications.
- Standard SOIC Package: Easy to integrate into existing PCB designs with standard manufacturing processes.
High-Speed Data Acquisition
The MAX184BCWG's 2.5M SPS sampling rate makes it ideal for high-speed data acquisition systems, such as transient recorders and high-frequency waveform digitizers.
Digital Oscilloscopes
In low-cost digital oscilloscopes, the MAX184BCWG provides fast 12-bit conversion, enabling accurate display of analog waveforms up to several megahertz.
Industrial Imaging Systems
For machine vision and industrial imaging, the MAX184BCWG can digitize high-speed video signals from line-scan cameras, supporting real-time inspection.
Communication Systems
The parallel interface and high speed make the MAX184BCWG suitable for baseband signal processing in communication systems, such as QAM demodulators.
Medical Ultrasound
In ultrasound equipment, the MAX184BCWG can digitize high-frequency echo signals, providing the speed needed for real-time imaging.
Automotive Engine Control
The 0°C to +70°C temperature range and high speed allow the MAX184BCWG to be used in automotive engine control units for rapid sensor signal processing.
- Q: What is the resolution of the MAX184BCWG?
- A: The MAX184BCWG is a 12-bit analog-to-digital converter, offering 4096 discrete levels for accurate signal conversion.
- Q: What is the maximum sampling rate of the MAX184BCWG?
- A: The MAX184BCWG supports a high sampling rate of 2.5M SPS, enabling digitization of fast analog signals.
- Q: How many input channels does the MAX184BCWG have?
- A: The MAX184BCWG has a single input channel, optimized for high-speed single-signal conversion.
- Q: What interface does the MAX184BCWG use?
- A: The MAX184BCWG uses a parallel interface for high-speed data output, ideal for direct connection to digital buses.
- Q: What is the architecture of the MAX184BCWG?
- A: The MAX184BCWG uses a successive approximation ADC architecture, providing fast and accurate conversions.
- Q: What is the package type of the MAX184BCWG?
- A: The MAX184BCWG is available in a 24-pin SOIC package with a 0.295-inch width (7.50mm), suitable for surface-mount designs.
