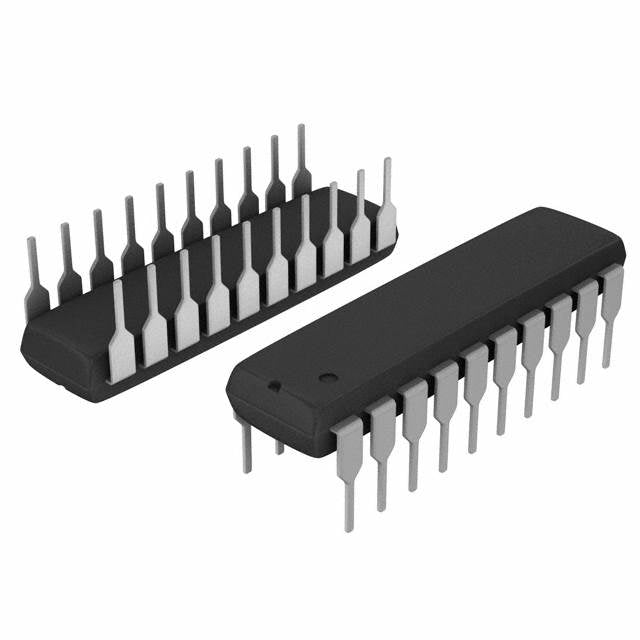

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Analog Devices Inc./Maxim Integrated
MAX186BCPP+
MAX186BCPP+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 89.05 AED | Dhs. 89.05 AED |
| 15+ | Dhs. 86.23 AED | Dhs. 1,293.45 AED |
| 25+ | Dhs. 84.36 AED | Dhs. 2,109.00 AED |
| 50+ | Dhs. 79.67 AED | Dhs. 3,983.50 AED |
| 100+ | Dhs. 70.30 AED | Dhs. 7,030.00 AED |
| N+ | Dhs. 14.06 AED | Price Inquiry |
Couldn't load pickup availability
Apply for PCBA engineering assistance
MAX186BCPP+ Data Acquisition System
The MAX186BCPP+ from Analog Devices Inc./Maxim Integrated is a high-performance 12-bit, 8-channel analog-to-digital converter (ADC) designed for precision data acquisition applications. With a 133kSPS sampling rate and versatile serial interfaces (SPI™, QSPI™, MICROWIRE™), this ADC delivers reliable performance for industrial, instrumentation, and embedded system designs.
Key Features
- 12-bit resolution for accurate analog signal conversion
- 8 input channels for multi-signal monitoring
- 133kSPS sampling rate for fast data capture
- Multiple serial interfaces: SPI™, QSPI™, MICROWIRE™
- Dual ±5V power supply for flexible system integration
- Through-hole 20-DIP package for easy prototyping and assembly
- RoHS compliant for environmental compliance
- 0°C to 70°C operating temperature range
Applications
Perfect for industrial control systems, medical instrumentation, test and measurement equipment, process control, and embedded data acquisition systems requiring multi-channel analog input conversion.
Complete Technical Specifications
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Tube | |
| Type | Data Acquisition System (DAS), ADC |
| Number of Channels | 8 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 133k |
| Data Interface | MICROWIRE™, QSPI™, Serial, SPI™ |
| Voltage Supply Source | Dual ± |
| Voltage - Supply | ±5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP |
| ROHS |  |
Why Choose MAX186BCPP+?
Backed by Analog Devices' reputation for precision analog technology, the MAX186BCPP+ offers engineers a proven solution for multi-channel data acquisition with excellent linearity, low power consumption, and straightforward serial interfacing. Full traceability and RoHS/REACH compliance ensure long-term availability and regulatory adherence.
Datasheets:
MAX186BCPP+.pdf
