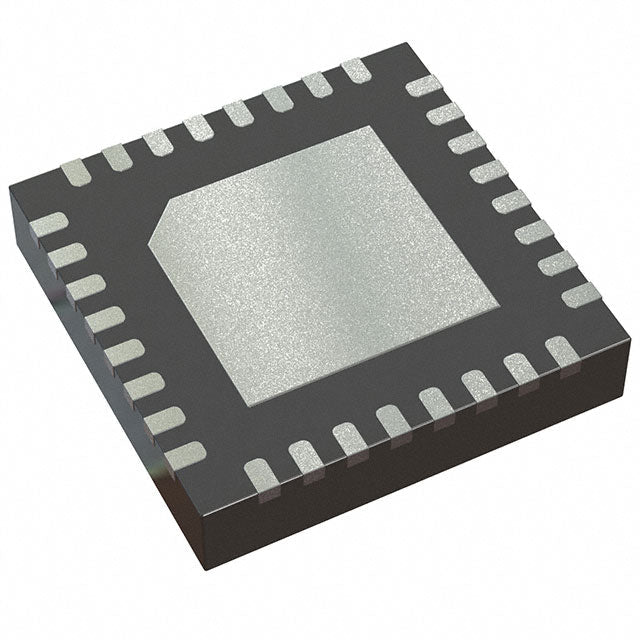

Analog Devices Inc./Maxim Integrated MAX1870AETJ+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $18.04 | $18.04 |
| 15+ | $17.47 | $262.05 |
| 25+ | $17.09 | $427.25 |
| 50+ | $16.14 | $807.00 |
| 100+ | $14.24 | $1,424.00 |
| N+ | $2.85 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tube |
| Battery Chemistry | Multi-Chemistry |
| Number of Cells | 2 ~ 4 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | - |
| Charge Current - Max | 4A |
| Battery Pack Voltage | 17.6V (Max) |
| Voltage - Supply (Max) | 28V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-TQFN (5x5) |
| ROHS |  |
The MAX1870AETJ+ is a high-performance, multi-chemistry battery charger designed for demanding applications. It delivers a powerful 4A charge current to battery packs with 2 to 4 cells, supporting a maximum voltage of 17.6V. Engineered to operate reliably from -40°C to 85°C, it is well-suited for industrial, automotive, and outdoor environments. The compact 32-WFQFN Exposed Pad package facilitates efficient heat dissipation, making it a robust choice for high-current charging systems.
- High-Current Charging: The 4A output significantly reduces charging time for large multi-cell packs.
- Wide Temperature Operation: Rated for -40°C to 85°C, it is ideal for harsh industrial and automotive environments.
- Multi-Chemistry Support: Offers flexibility to charge various battery types, including Li-Ion and Li-Polymer.
- Efficient Thermal Management: The exposed pad package aids in heat dissipation, ensuring stable performance at high currents.
Automotive Accessory Chargers
With a -40°C to 85°C temperature range, it is suitable for charging multi-chemistry battery packs in automotive electronics and telematics systems.
Industrial Power Tools
The 4A charge current and support for up to 4 cells make it ideal for high-capacity battery packs in professional-grade power tools used on job sites.
Outdoor Portable Equipment
For rugged GPS units and field communication devices, the wide temperature range ensures reliable charging in extreme weather conditions.
High-Performance Drones
Multi-chemistry support and high current output are critical for quickly and safely charging the LiPo packs used in commercial drones.
Robotic Systems
In industrial robotics, the charger's robust temperature tolerance and high current capability support the demanding power needs of autonomous mobile robots.
- Q: What battery chemistries does the MAX1870AETJ+ support?
- A: It is a Multi-Chemistry charger.
- Q: How many cells can it charge?
- A: It supports 2 to 4 cells.
- Q: What is the maximum charge current?
- A: The maximum charge current is 4A.
- Q: What is the maximum battery pack voltage?
- A: The maximum battery pack voltage is 17.6V.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C (TA).
- Q: What package is available?
- A: It is available in a 32-WFQFN Exposed Pad package.
MAX1870AETJ+.pdf
