Analog Devices Inc./Maxim Integrated MAX1898EUB42-T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.37 | $2.37 |
| 15+ | $2.29 | $34.35 |
| 25+ | $2.24 | $56.00 |
| 50+ | $2.12 | $106.00 |
| 100+ | $1.87 | $187.00 |
| N+ | $0.37 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current, Timer, Voltage |
| Fault Protection | - |
| Charge Current - Max | 1.4A |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 12V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

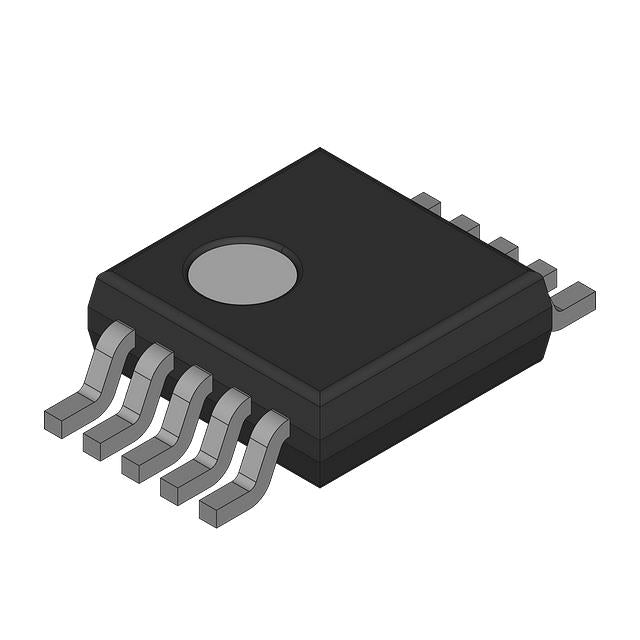

| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-uMAX |
The MAX1898EUB42-T is a single-cell Lithium Ion battery charger from Analog Devices/Maxim Integrated. It delivers up to 1.4A of charge current to a 4.2V battery. The device is packaged in a compact 10-TFSOP or 10-MSOP package, suitable for space-constrained portable electronics. With an operating temperature range of -40°C to 85°C, it is designed for reliable performance across diverse environmental conditions.
- High Charge Current: Supports up to 1.4A, enabling faster charging for single-cell Li-Ion batteries.
- Precise Voltage Regulation: Targets a 4.2V battery voltage, ensuring full capacity utilization without overcharging.
- Wide Temperature Operation: Rated from -40°C to 85°C, suitable for outdoor and industrial portable devices.
- Compact Packaging: Available in 10-MSOP/TFSOP, ideal for miniaturized consumer electronics.
Smartphones and Tablets
The 1.4A charge current and 4.2V target make it ideal for charging single-cell Li-Ion batteries in compact mobile devices, with the MSOP package saving board space.
Portable Media Players
MP3 players and handheld gaming consoles benefit from the precise 4.2V termination voltage, maximizing battery capacity while ensuring safe operation.
Wireless Headsets
Small form-factor charging solutions for Bluetooth earbuds leverage the 10-MSOP package and wide temperature range for reliable charging in wearable devices.
Digital Cameras
Camera battery packs require accurate voltage control; the MAX1898EUB42-T provides a consistent 4.2V charge profile for Li-Ion cells.
GPS Trackers
Portable GPS devices operating in outdoor environments benefit from the -40°C to 85°C rating, ensuring charging functionality in extreme weather.
- Q: What battery chemistry is supported?
- A: The MAX1898EUB42-T is designed for single-cell Lithium Ion batteries.
- Q: How many cells can it charge?
- A: It supports exactly 1 cell.
- Q: What is the maximum charge current?
- A: The maximum charge current is 1.4A.
- Q: What is the battery voltage?
- A: The target battery voltage is 4.2V.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C (TA).
- Q: What package is available?
- A: It comes in a 10-TFSOP or 10-MSOP (0.118", 3.00mm Width) package.
