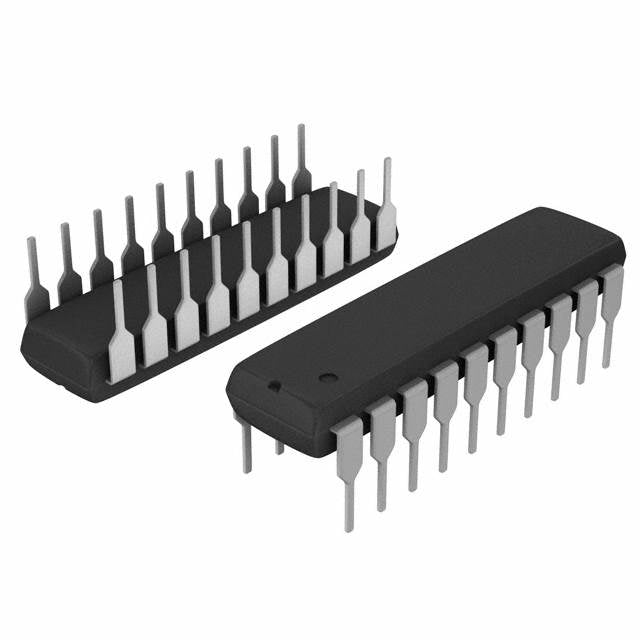

Analog Devices Inc./Maxim Integrated MAX192ACPP+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $24.97 | $24.97 |
| 15+ | $24.18 | $362.70 |
| 25+ | $23.65 | $591.25 |
| 50+ | $22.34 | $1,117.00 |
| 100+ | $19.71 | $1,971.00 |
| N+ | $3.94 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Tube | |
| Type | Data Acquisition System (DAS), ADC |
| Number of Channels | 8 |
| Resolution (Bits) | 10 b |
| Sampling Rate (Per Second) | 133k |
| Data Interface | MICROWIRE™, QSPI™, Serial, SPI™ |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | ±5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP |
| ROHS |  |
The MAX192ACPP+ is a high-performance 10-bit, 8-channel analog-to-digital converter (ADC) data acquisition system from Analog Devices Inc./Maxim Integrated. Designed for precision measurement applications, this ADC features a 133kSPS sampling rate and supports multiple serial interfaces including SPI™, QSPI™, and MICROWIRE™ for seamless integration into embedded systems.
Key Features:
- 10-bit resolution for accurate analog signal conversion
- 8 input channels for multi-signal monitoring
- 133kSPS sampling rate for real-time data acquisition
- Flexible serial interface: SPI™, QSPI™, MICROWIRE™
- Single ±5V supply operation
- 0°C to 70°C operating temperature range
- Through-hole 20-DIP package for easy prototyping and production
- RoHS compliant for environmental compliance
Applications: Industrial process control, sensor monitoring, medical instrumentation, test and measurement equipment, automotive diagnostics, and multi-channel data logging systems.
Technical Specifications:
Related Products & Resources:
- Explore our complete ADCs/DACs - Special Purpose collection for more data conversion solutions
- Visit HQICKEY homepage for our full range of premium semiconductor components
- Read our technical blog for application notes, design tips, and industry insights
Backed by full traceability and long lifecycle availability, the MAX192ACPP+ is your reliable choice for precision data acquisition in demanding industrial and commercial applications.
