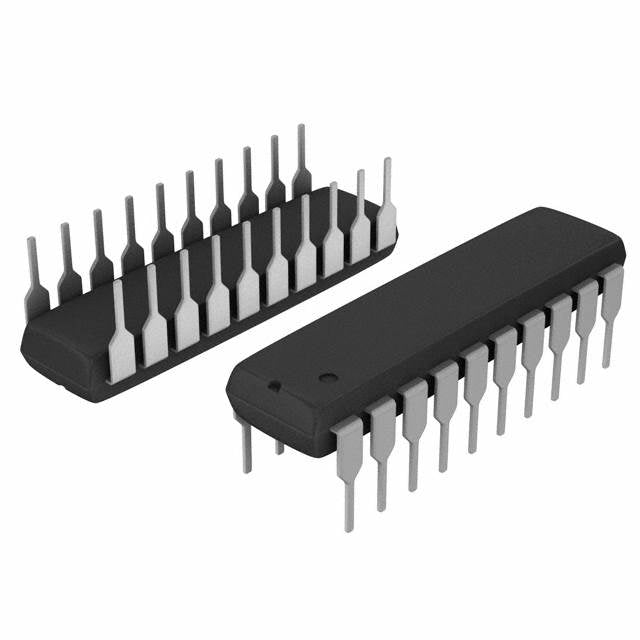

MAX192BCPP+

MAX192BCPP+ - 10-Bit 8-Channel Data Acquisition System (DAS/ADC)

The MAX192BCPP+ from Analog Devices Inc./Maxim Integrated is a high-performance 10-bit data acquisition system featuring 8 channels and a 133kSPS sampling rate. This versatile ADC supports multiple serial interfaces including SPI™, QSPI™, and MICROWIRE™, making it ideal for industrial control, instrumentation, and embedded system applications.

Key Features:

• 10-bit resolution with 8 multiplexed input channels
• 133kSPS sampling rate for fast data acquisition
• Flexible serial interfaces: SPI™, QSPI™, MICROWIRE™
• Single ±5V supply operation for simplified power design
• Through-hole 20-DIP package for easy prototyping and reliable mounting
• RoHS compliant for environmental compliance
• Operating temperature range: 0°C to 70°C for commercial applications

Applications:

Perfect for industrial automation, process control, medical instrumentation, test and measurement equipment, and embedded data acquisition systems requiring multi-channel analog-to-digital conversion with reliable performance.

Why Choose MAX192BCPP+?

As an authorized distributor, we guarantee 100% authentic components with full traceability, original manufacturer documentation, and long lifecycle support. Each unit ships with RoHS/REACH compliance certification and is backed by our quality assurance program.

Complete Technical Specifications:

Product attributes	Property Value
Manufacturer	Analog Devices Inc./Maxim Integrated
Product Series
Packaging	Factory | Tube
Type	Data Acquisition System (DAS), ADC
Number of Channels	8
Resolution (Bits)	10 b
Sampling Rate (Per Second)	133k
Data Interface	MICROWIRE™, QSPI™, Serial, SPI™
Voltage Supply Source	Single Supply
Voltage - Supply	±5V
Operating Temperature	0°C ~ 70°C
Mounting Type	Through Hole
Grade	-
Qualification	-
Package / Case	20-DIP (0.300", 7.62mm)
Supplier Device Package	20-PDIP
ROHS
