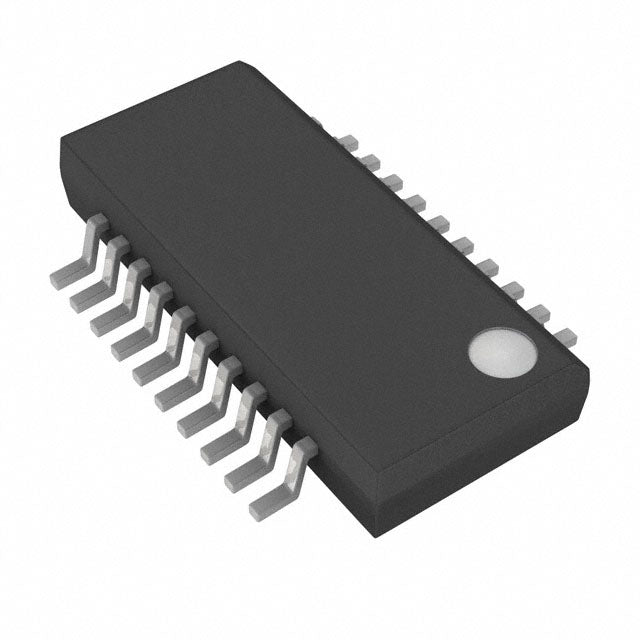

Analog Devices Inc./Maxim Integrated MAX1960EEP+
Regular price
$9.32
Regular price
$9.81
Sale price
$9.32
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.32 | $9.32 |
| 15+ | $9.03 | $135.45 |
| 25+ | $8.83 | $220.75 |
| 50+ | $8.34 | $417.00 |
| 100+ | $7.36 | $736.00 |
| N+ | $1.47 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tube |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 2.35V ~ 5.5V |
| Frequency - Switching | 500kHz, 1MHz |
| Duty Cycle (Max) | 92% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 20-QSOP |
| ROHS |  |
MAX1960EEP+.pdf
×
