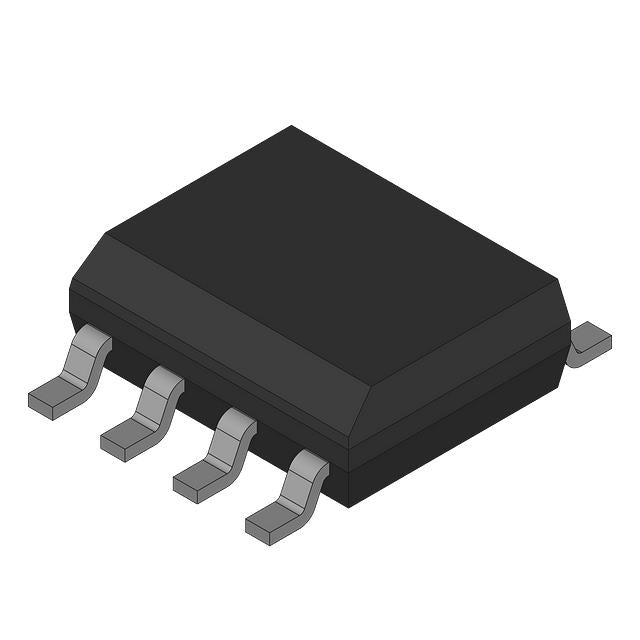

Analog Devices Inc./Maxim Integrated MAX1966ESA
Regular price
$5.36
Regular price
$1.34
Sale price
$5.36
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.36 | $5.36 |
| 15+ | $1.23 | $18.45 |
| 25+ | $1.21 | $30.25 |
| 50+ | $1.14 | $57.00 |
| 100+ | $1.01 | $101.00 |
| N+ | $0.20 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Frequency - Switching | 102kHz |
| Duty Cycle (Max) | 95% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Dead Time Control, Pulse Skipping, Ramp, Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
MAX1966ESA.pdf
×
