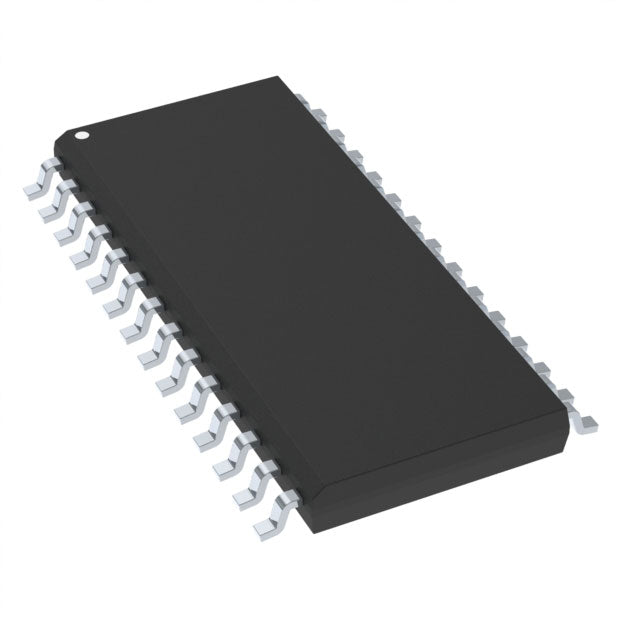

MAX196BCAI+ - High-Performance 12-Bit Data Acquisition System

The MAX196BCAI+ from Analog Devices Inc./Maxim Integrated is a precision 12-bit data acquisition system (DAS) designed for mission-critical applications in aerospace, industrial automation, medical instrumentation, and telecommunications. This high-reliability IC features 6 input channels with a 100kSPS sampling rate and parallel data interface, making it ideal for multi-channel measurement and control systems.

Key Features & Benefits

• 12-bit resolution ensures accurate analog-to-digital conversion for precision measurements
• 6-channel multiplexed input reduces component count and system complexity
• 100kSPS sampling rate supports real-time data acquisition in demanding applications
• Single 5V supply operation (4.75V-5.25V) simplifies power design
• Surface mount 28-SSOP package optimized for automated assembly and space-constrained designs
• RoHS compliant meets environmental and regulatory standards
• 0°C to 70°C operating range suitable for commercial and industrial environments

Applications

This data acquisition IC is engineered for long lifecycle availability and full traceability, supporting critical designs in process control, test and measurement equipment, data logging systems, and embedded instrumentation platforms.

Complete Technical Specifications

Product attributes	Property Value
Manufacturer	Analog Devices Inc./Maxim Integrated
Product Series
Packaging	Factory | Tube
Type	Data Acquisition System (DAS)
Number of Channels	6
Resolution (Bits)	12 b
Sampling Rate (Per Second)	100k
Data Interface	Parallel
Voltage Supply Source	Single Supply
Voltage - Supply	4.75V ~ 5.25V
Operating Temperature	0°C ~ 70°C
Mounting Type	Surface Mount
Grade	-
Qualification	-
Package / Case	28-SSOP (0.209", 5.30mm Width)
Supplier Device Package	28-SSOP
ROHS

Authorized Distributor | Full traceability and compliance documentation available | Long lifecycle support for critical designs
