MAX198ACNI+

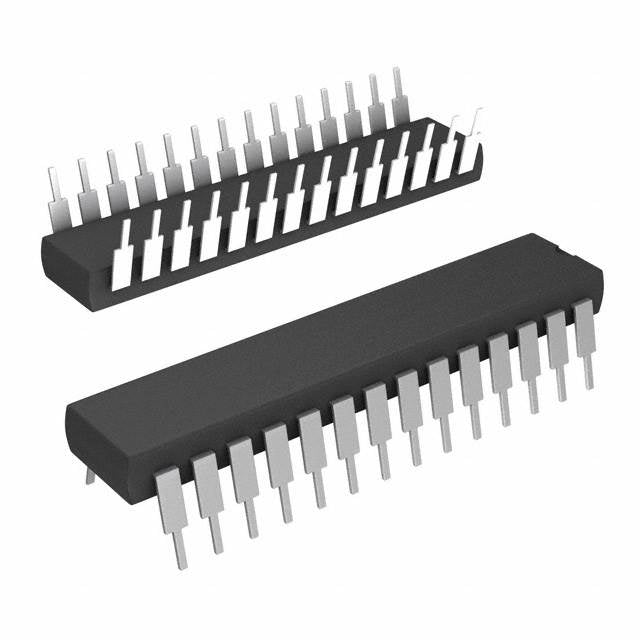

MAX198ACNI+ Data Acquisition System IC

The MAX198ACNI+ from Analog Devices Inc./Maxim Integrated is a high-performance 12-bit data acquisition system (DAS) featuring 6 input channels and a 100kSPS sampling rate. Designed for precision analog-to-digital conversion applications, this IC offers reliable performance in industrial, instrumentation, and embedded system designs.

Key Features

• 12-bit resolution for accurate signal conversion
• 6-channel multiplexed input for multi-signal monitoring
• 100kSPS sampling rate for real-time data capture
• Parallel data interface for fast communication
• Single 5V supply operation (4.75V to 5.25V)
• Through-hole 28-DIP package for easy prototyping and assembly
• 0°C to 70°C operating temperature range
• RoHS compliant for environmental standards

Applications

Ideal for industrial control systems, medical instrumentation, test and measurement equipment, process control, and multi-channel data logging applications requiring precision analog input conversion.

Complete Technical Specifications

Product attributes	Property Value
Manufacturer	Analog Devices Inc./Maxim Integrated
Product Series
Packaging	Marketplace | Tube
Type	Data Acquisition System (DAS)
Number of Channels	6
Resolution (Bits)	12 b
Sampling Rate (Per Second)	100k
Data Interface	Parallel
Voltage Supply Source	Single Supply
Voltage - Supply	4.75V ~ 5.25V
Operating Temperature	0°C ~ 70°C
Mounting Type	Through Hole
Grade	-
Qualification	-
Package / Case	28-DIP (0.300", 7.62mm)
Supplier Device Package	28-PDIP
ROHS
