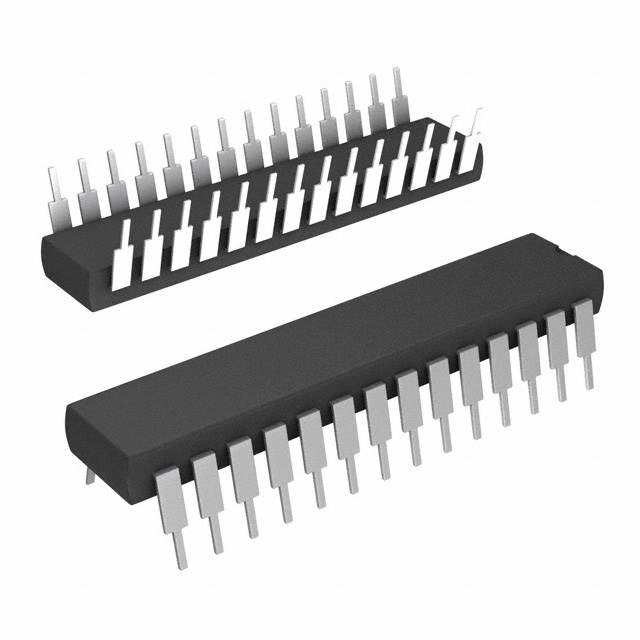

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Analog Devices Inc./Maxim Integrated
MAX198BCNI+
MAX198BCNI+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,889.44 AED | Dhs. 355,889.44 AED |
| 15+ | Dhs. 344,650.82 AED | Dhs. 5,169,762.30 AED |
| 25+ | Dhs. 337,158.41 AED | Dhs. 8,428,960.25 AED |
| 50+ | Dhs. 318,427.39 AED | Dhs. 15,921,369.50 AED |
| 100+ | Dhs. 280,965.35 AED | Dhs. 28,096,535.00 AED |
| N+ | Dhs. 56,193.07 AED | Price Inquiry |
Couldn't load pickup availability
Apply for PCBA engineering assistance
MAX198BCNI+ Data Acquisition System IC
The MAX198BCNI+ from Analog Devices Inc./Maxim Integrated is a high-performance 12-bit Data Acquisition System (DAS) featuring 6 channels and 100kSPS sampling rate. Designed for industrial, automotive, and instrumentation applications requiring precision analog-to-digital conversion with parallel data interface.
Key Features
- 12-bit resolution for accurate signal conversion
- 6-channel multiplexed input
- 100kSPS sampling rate for real-time data capture
- Single supply operation (4.75V to 5.25V)
- Parallel data interface for fast communication
- Through-hole mounting for reliable board assembly
- RoHS compliant for environmental standards
- Operating temperature: 0°C to 70°C
Applications
Ideal for process control systems, medical instrumentation, test and measurement equipment, industrial automation, and multi-channel data logging applications where precision and reliability are critical.
Complete Technical Specifications
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Marketplace | Tube |
| Type | Data Acquisition System (DAS) |
| Number of Channels | 6 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 100k |
| Data Interface | Parallel |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 28-DIP (0.300", 7.62mm) |
| Supplier Device Package | 28-PDIP |
| ROHS |  |
Quality & Compliance
As an authorized distributor, we provide 100% authentic components with full traceability and manufacturer documentation. All products meet RoHS and REACH compliance standards for environmental safety and long-term availability.
Datasheets:
MAX198BCNI+.pdf
