Analog Devices Inc./Maxim Integrated MAX199BCNI+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,904.94 | Dhs. 355,904.94 |
| 15+ | Dhs. 344,665.84 | Dhs. 5,169,987.60 |
| 25+ | Dhs. 337,173.10 | Dhs. 8,429,327.50 |
| 50+ | Dhs. 318,441.26 | Dhs. 15,922,063.00 |
| 100+ | Dhs. 280,977.59 | Dhs. 28,097,759.00 |
| N+ | Dhs. 56,195.52 | Price Inquiry |
Request Quote / Inquiry

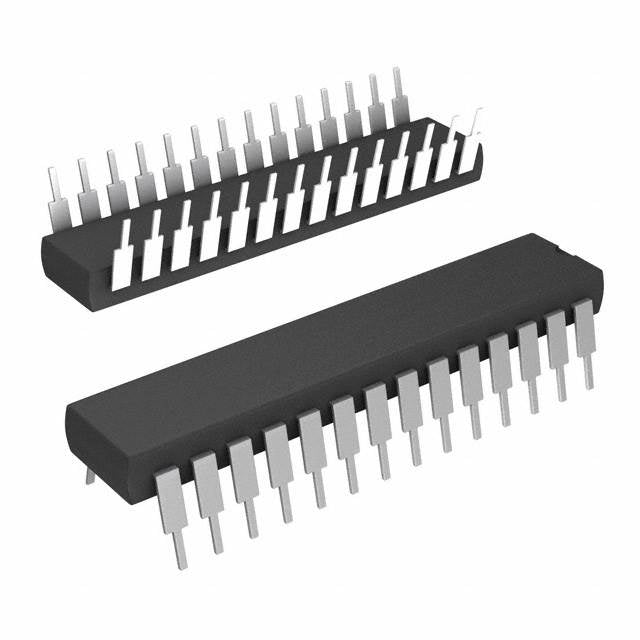

MAX199BCNI+ - 8-Channel 12-Bit Data Acquisition System
The MAX199BCNI+ from Analog Devices (Maxim Integrated) is a high-performance 8-channel data acquisition system (DAS) featuring 12-bit resolution and 100kSPS sampling rate. Designed for industrial, instrumentation, and embedded applications requiring multi-channel analog signal conversion with a parallel data interface.
Key Features:
- 8 analog input channels for versatile multi-signal monitoring
- 12-bit resolution delivers precise measurement accuracy
- 100kSPS sampling rate enables fast signal acquisition
- Parallel data interface for straightforward microcontroller integration
- Single 5V supply operation (4.75V to 5.25V) simplifies power design
- 0°C to 70°C operating range suitable for commercial applications
- Through-hole 28-DIP package for easy prototyping and reliable assembly
Applications:
Ideal for industrial process control, test and measurement equipment, data logging systems, multi-sensor monitoring, embedded control systems, and instrumentation requiring simultaneous multi-channel analog-to-digital conversion.
Authorized Distributor Benefits:
We provide 100% authentic MAX199BCNI+ components with full manufacturer traceability, complete datasheets, and technical documentation. All units are sourced through authorized channels with long lifecycle support to protect your design investment.
Technical Specifications:
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | | |
| Type | Data Acquisition System (DAS) |
| Number of Channels | 8 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 100k |
| Data Interface | Parallel |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 28-DIP (0.300", 7.62mm) |
| Supplier Device Package | 28-PDIP |
| ROHS |  |
MAX199BCNI+.pdf
