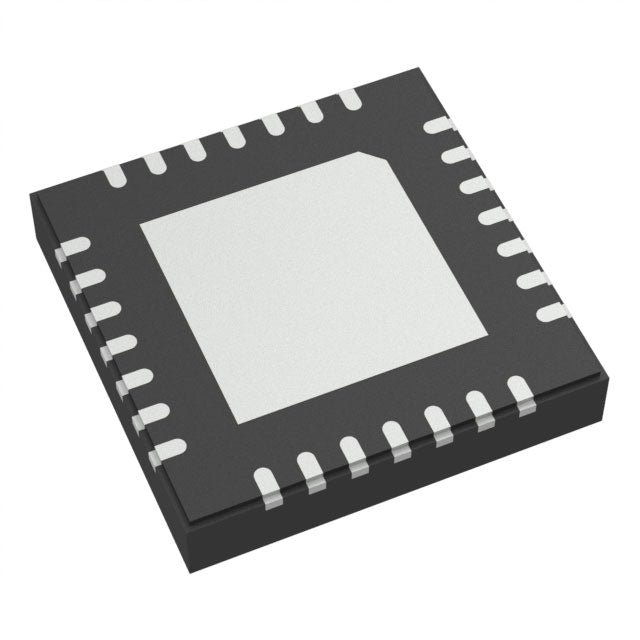

Analog Devices Inc./Maxim Integrated MAX20094ATIA/VY+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.64 | $7.64 |
| 15+ | $7.40 | $111.00 |
| 25+ | $7.24 | $181.00 |
| 50+ | $6.83 | $341.50 |
| 100+ | $6.03 | $603.00 |
| N+ | $1.21 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Strip |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant |
| Programmable Features | - |
| Fault Protection | Over Current |
| Charge Current - Max | 1A |
| Battery Pack Voltage | 6V |
| Voltage - Supply (Max) | 7V |
| Interface | I2C, SMBus |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-TQFN (5x5) |
| ROHS |  |
The MAX20094ATIA/VY+ from Analog Devices Inc./Maxim Integrated is a high-temperature battery charger IC for single-cell Lithium Ion batteries. It provides a charge current up to 1A and supports a 6V battery voltage. The device features Over Current protection and an I2C/SMBus interface for digital control. Packaged in a 28-WFQFN Exposed Pad, it operates over an extended temperature range of -40°C to 125°C, making it suitable for automotive and industrial applications.
- Extended Temperature Range: Operates from -40°C to 125°C, ideal for automotive and harsh industrial environments.
- Digital Control: I2C/SMBus interface allows precise charging parameter configuration and monitoring.
- High Charge Current: 1A capability supports faster charging for single-cell Li-Ion batteries.
- Over Current Protection: Safeguards the battery and system from excessive current draw.
Automotive Infotainment Systems
With a wide -40°C to 125°C temperature range, the MAX20094ATIA/VY+ is ideal for under-hood or cabin electronics requiring reliable single-cell Li-Ion charging.
Industrial IoT Gateways
For remote monitoring equipment, this charger's I2C/SMBus interface allows precise control and monitoring of the charging process, with 1A current capability.
Portable Diagnostic Tools
In automotive scan tools, the MAX20094ATIA/VY+ provides robust charging for Li-Ion batteries, with Over Current protection for safe operation.
High-Temperature Environments
Designed for extreme conditions, this IC supports charging in engine compartments or near heat sources where standard chargers fail.
Smart Battery Systems
The I2C/SMBus interface enables communication with a host controller for advanced battery management in smart battery packs.
- Q: What battery chemistry does the MAX20094ATIA/VY+ support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells can it charge?
- A: It supports a single cell (1 cell).
- Q: What is the maximum charge current?
- A: The maximum charge current is 1A.
- Q: What is the battery voltage?
- A: The battery voltage is 6V.
- Q: What fault protection is included?
- A: It includes Over Current protection.
- Q: What interface does it use?
- A: It uses I2C and SMBus interfaces.
MAX20094ATIA/VY+.pdf
