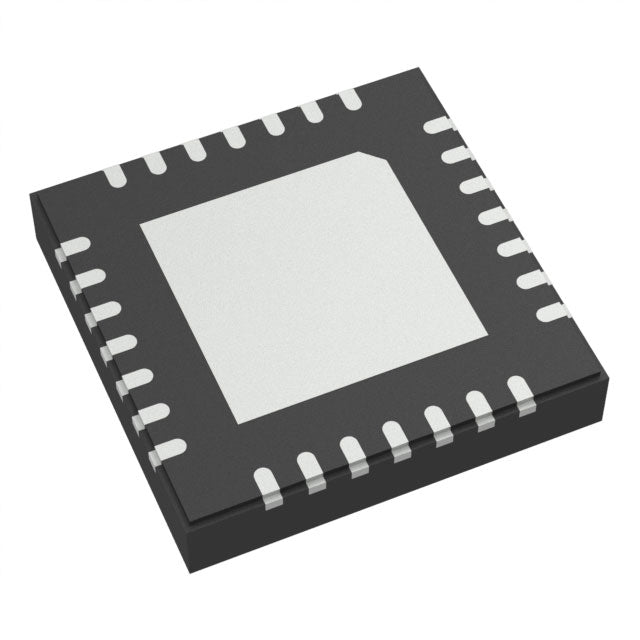

Analog Devices Inc./Maxim Integrated MAX20095ATIC/VY+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $19.74 | $19.74 |
| 15+ | $4.54 | $68.10 |
| 25+ | $4.44 | $111.00 |
| 50+ | $4.19 | $209.50 |
| 100+ | $3.70 | $370.00 |
| N+ | $0.74 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Strip |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant |
| Programmable Features | - |
| Fault Protection | - |
| Charge Current - Max | 1A |
| Battery Pack Voltage | 9V |
| Voltage - Supply (Max) | 36V |
| Interface | I2C, SMBus |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-TQFN (5x5) |
| ROHS |  |
The MAX20095ATIC/VY+ from Analog Devices is a smart battery charger IC for single-cell Lithium Ion batteries. It delivers a charge current up to 1A and supports a 9V battery voltage. The device features I2C and SMBus interfaces for digital control and monitoring. It operates over an ambient temperature range of -40°C to 125°C and is available in a 28-WFQFN exposed pad package, making it ideal for automotive and industrial applications.
- Digital interface: I2C and SMBus enable precise charge parameter configuration and real-time monitoring.
- Extended temperature range: -40°C to 125°C operation supports automotive and industrial environments.
- Compact size: 28-WFQFN package minimizes board space in space-limited designs.
- Reliable single-cell charging: 1A charge current is optimized for small to medium capacity Li-ion cells.
Automotive Infotainment
With a wide ambient temperature range of -40°C to 125°C, this charger is suitable for automotive head units and telematics systems that require reliable battery backup.
Industrial Sensors
The I2C/SMBus interface allows precise control and monitoring in industrial IoT sensors that operate in harsh environments.
Portable Diagnostic Equipment
Single-cell Li-ion support with 1A charge current is adequate for handheld diagnostic tools used in field service.
Battery-Backed Memory Systems
The 9V battery voltage and digital interface make it suitable for systems that maintain data integrity during power loss.
Avionics and Defense
The extended temperature range and robust interface support mission-critical portable electronics in demanding aerospace applications.
- Q: What battery chemistry does the MAX20095ATIC/VY+ support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells can it charge?
- A: It supports a single cell (1 cell).
- Q: What is the maximum charge current?
- A: The maximum charge current is 1A.
- Q: What is the battery voltage?
- A: The battery voltage is 9V.
- Q: What interface does it use?
- A: It uses I2C and SMBus interfaces.
- Q: What is the operating temperature range?
- A: The ambient temperature range is -40°C to 125°C.
MAX20095ATIC/VY+.pdf
- Q: What battery chemistry does the MAX20095ATIC/VY+ support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells can it charge?
- A: It supports a single cell (1 cell).
- Q: What is the maximum charge current?
- A: The maximum charge current is 1A.
- Q: What is the battery voltage?
- A: The battery voltage is 9V.
- Q: What interface does it use?
- A: It uses I2C and SMBus interfaces.
- Q: What is the operating temperature range?
- A: The ambient temperature range is -40°C to 125°C.
