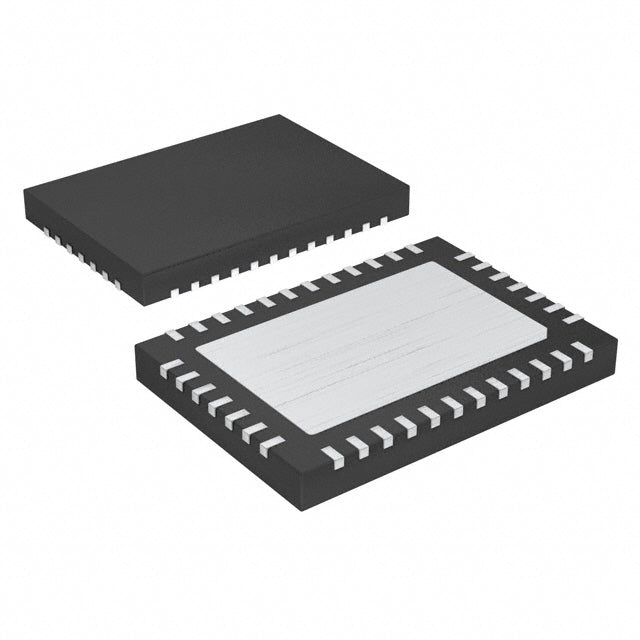

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Analog Devices Inc./Maxim Integrated
MAX22208ATU+
MAX22208ATU+
Regular price
Dhs. 26.75
Regular price
Dhs. 28.17
Sale price
Dhs. 26.75
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 26.75 AED | Dhs. 26.75 AED |
| 15+ | Dhs. 25.92 AED | Dhs. 388.80 AED |
| 25+ | Dhs. 25.35 AED | Dhs. 633.75 AED |
| 50+ | Dhs. 23.94 AED | Dhs. 1,197.00 AED |
| 100+ | Dhs. 21.13 AED | Dhs. 2,113.00 AED |
| N+ | Dhs. 4.23 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tube |
| Output Configuration | Half Bridge (4) |
| Applications | DC Motors, Solenoids |
| Interface | PWM |
| Load Type | Inductive |
| Technology | NMOS |
| Rds On (Typ) | 150mOhm LS, 150mOhm HS |
| Current - Output / Channel | 2A |
| Current - Peak Output | 3.8A |
| Voltage - Supply | 4.5V ~ 65V |
| Voltage - Load | 4.5V ~ 65V |
| Features | Charge Pump |
| Fault Protection | Current Limiting, Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 38-WFQFN Exposed Pad |
| Supplier Device Package | 38-TQFN (5x7) |
Datasheets:
MAX22208ATU+
.pdf
×
