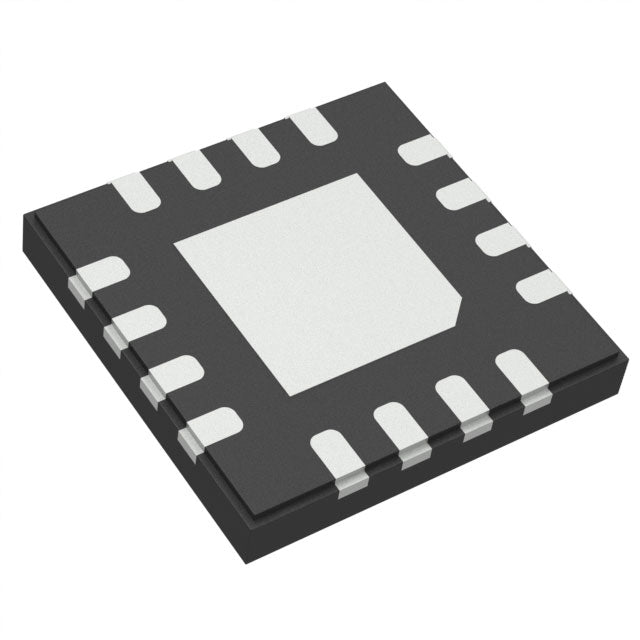

Analog Devices Inc./Maxim Integrated MAX25200ATED/VY+
Regular price
$3.62
Regular price
$3.81
Sale price
$3.62
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.62 | $3.62 |
| 15+ | $3.51 | $52.65 |
| 25+ | $3.43 | $85.75 |
| 50+ | $3.24 | $162.00 |
| 100+ | $2.86 | $286.00 |
| N+ | $0.57 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Tray | |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Flyback, SEPIC |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 36V |
| Frequency - Switching | 220kHz ~ 2.2MHz |
| Duty Cycle (Max) | - |
| Synchronous Rectifier | No |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Off Time Control, On Time Control, Ramp, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-SW-TQFN (3x3) |
| ROHS |  |
MAX25200ATED/VY+.pdf
×
