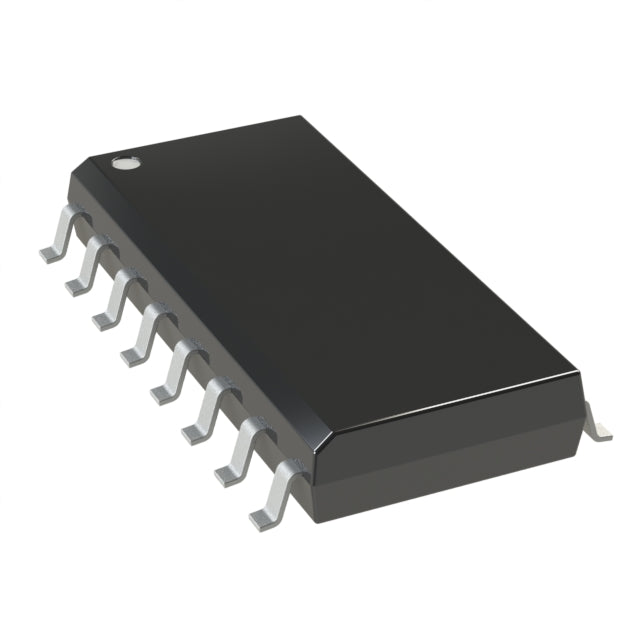

Analog Devices Inc./Maxim Integrated MAX309CUE+
Regular price
$15.49
Regular price
$16.31
Sale price
$15.49
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $15.49 | $15.49 |
| 15+ | $15.01 | $225.15 |
| 25+ | $14.68 | $367.00 |
| 50+ | $13.86 | $693.00 |
| 100+ | $12.23 | $1,223.00 |
| N+ | $2.45 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tube |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 100Ohm |
| Channel-to-Channel Matching (ΔRon) | 1.5Ohm |
| Voltage - Supply, Single (V+) | 5V ~ 30V |
| Voltage - Supply, Dual (V±) | ±5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 150ns, 150ns |
| -3db Bandwidth | - |
| Charge Injection | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 3pF, 26pF |
| Current - Leakage (IS(off)) (Max) | 750pA |
| Crosstalk | -92dB @ 100kHz |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP (0.173", 4.40mm Width) |
| ROHS |  |
MAX309CUE+.pdf
×
