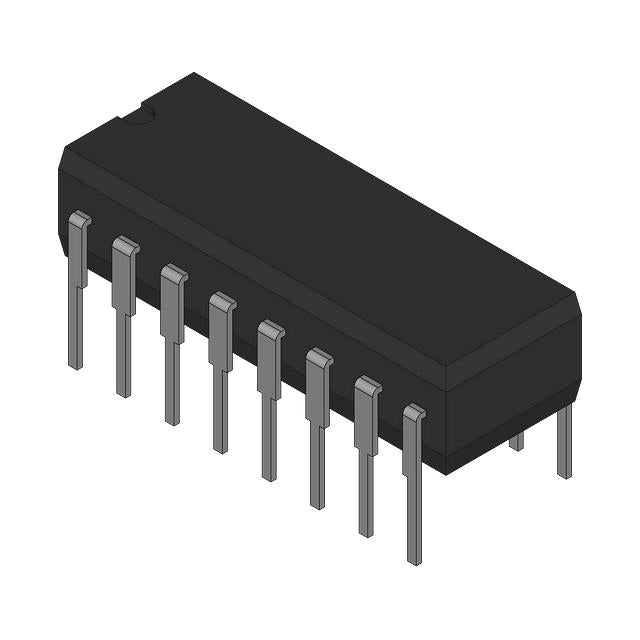

Analog Devices Inc./Maxim Integrated MAX314FEPE
Regular price
$5.67
Regular price
$5.97
Sale price
$5.67
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.67 | $5.67 |
| 15+ | $5.49 | $82.35 |
| 25+ | $5.37 | $134.25 |
| 50+ | $5.07 | $253.50 |
| 100+ | $4.48 | $448.00 |
| N+ | $0.90 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Marketplace | Tube |
| Switch Circuit | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 10Ohm |
| Channel-to-Channel Matching (ΔRon) | 50mOhm |
| Voltage - Supply, Single (V+) | 9V ~ 36V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 225ns, 185ns |
| -3db Bandwidth | - |
| Charge Injection | 70pC |
| Channel Capacitance (CS(off), CD(off)) | 20pF, 20pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -104dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-DIP (0.300", 7.62mm) |
| ROHS |  |
MAX314FEPE.pdf
×
