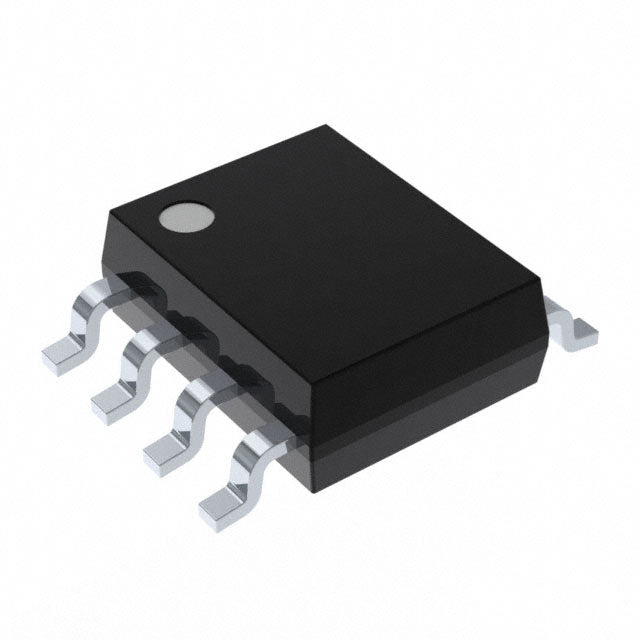

Analog Devices Inc./Maxim Integrated MAX322ESA+
Regular price
$7.43
Regular price
$7.82
Sale price
$7.43
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.43 | $7.43 |
| 15+ | $7.19 | $107.85 |
| 25+ | $7.04 | $176.00 |
| 50+ | $6.65 | $332.50 |
| 100+ | $5.87 | $587.00 |
| N+ | $1.17 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tube |
| Switch Circuit | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 35Ohm |
| Channel-to-Channel Matching (ΔRon) | 300mOhm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±2.7V ~ 8V |
| Switch Time (Ton, Toff) (Max) | 150ns, 100ns |
| -3db Bandwidth | - |
| Charge Injection | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 9pF, 9pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC (0.154", 3.90mm Width) |
| ROHS |  |
MAX322ESA+.pdf
×
